Configuring Layer 2 Multicast Configuration Examples
User Guide 271
■ Enable IGMP Snooping on the ports.
Demonstrated with T1500-28PCT , this section provides configuration procedures in two
ways: using the GUI and using the CLI.
7.1.3 Using the GUI

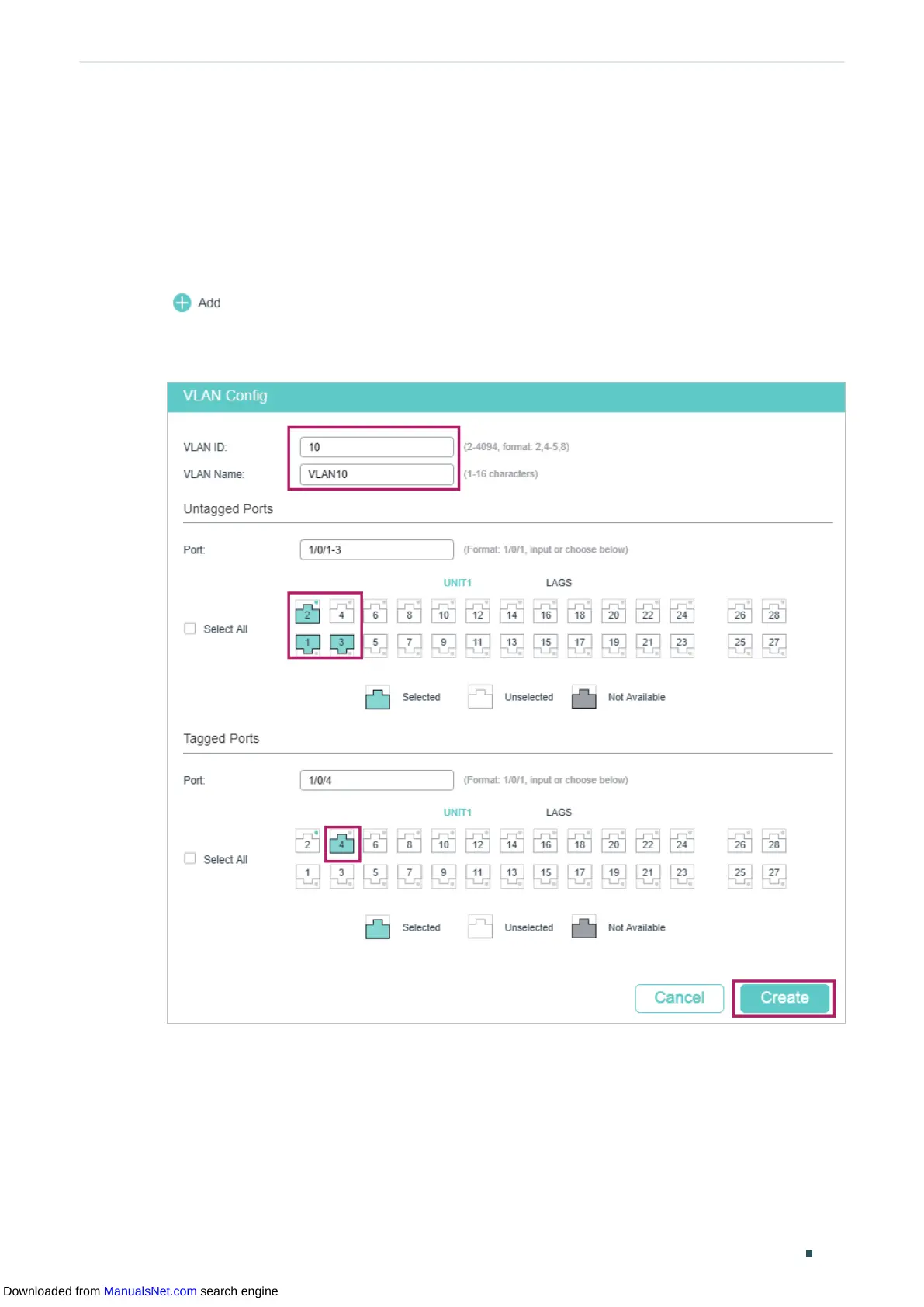

1) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 10 and add Untagged port 1/0/1-3 and
Tagged port 1/0/4 to VLAN 10.
Figure 7-2 Create VLAN 10
2) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > Port Config to load the
following page. Configure the PVID of port 1/0/1-4 as 10.
