Configuring GVRP Configuration Example
User Guide 203

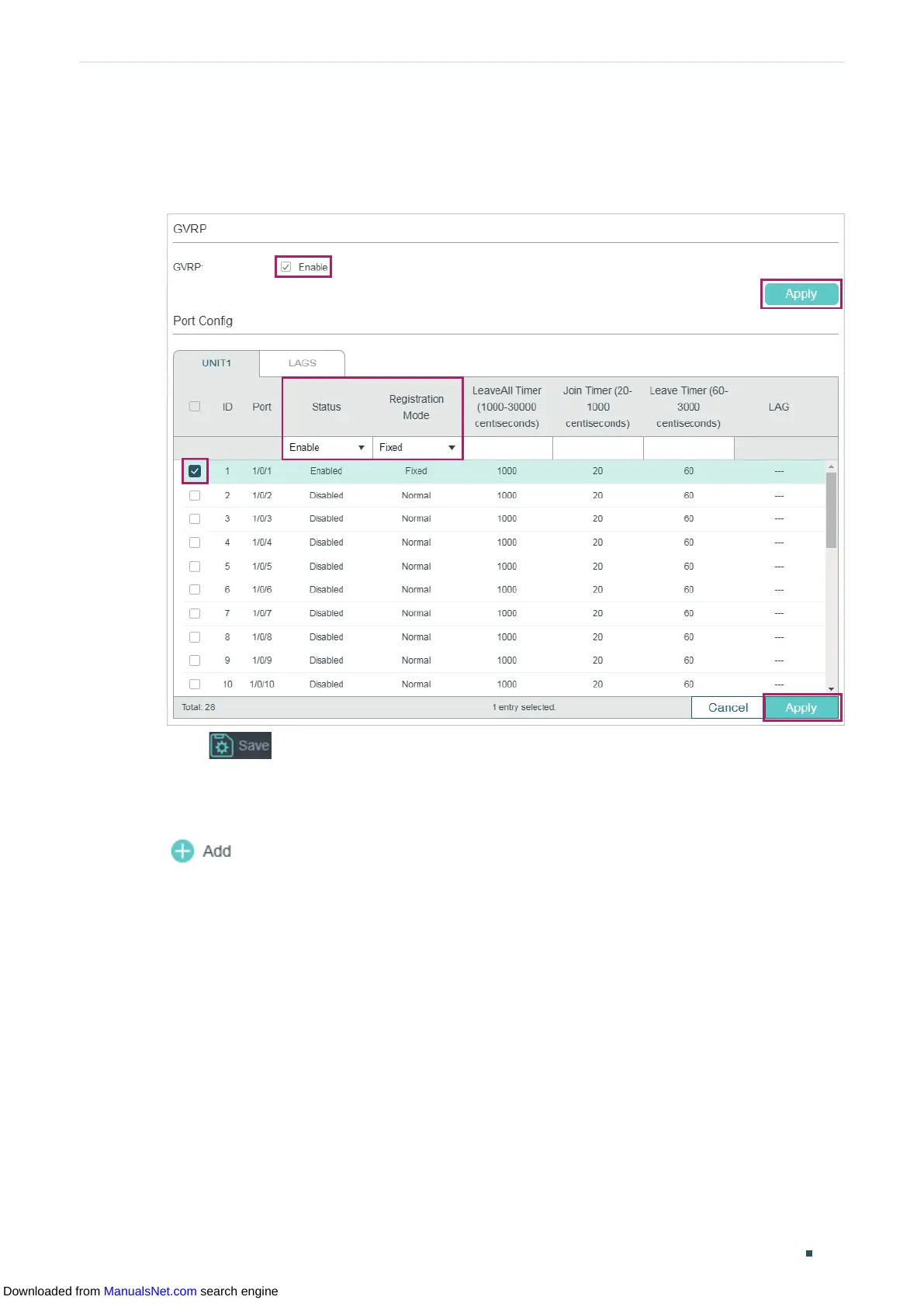

2) Choose the menu L2 FEATURES > VLAN > GVRP to load the following page. Enable
GVRP globally, then click Apply. Select port 1/0/1, set Status as Enable, and set
Registration Mode as Fixed. Keep the values of the timers as default. Click Apply.
Figure 3-3 GVRP Configuration
3) Click to save the settings.
■ Configurations for Switch 2
1) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 20 and add tagged port 1/0/1 to it.
Click Create.
