Configuring Layer 2 Multicast Configuration Examples
User Guide 289

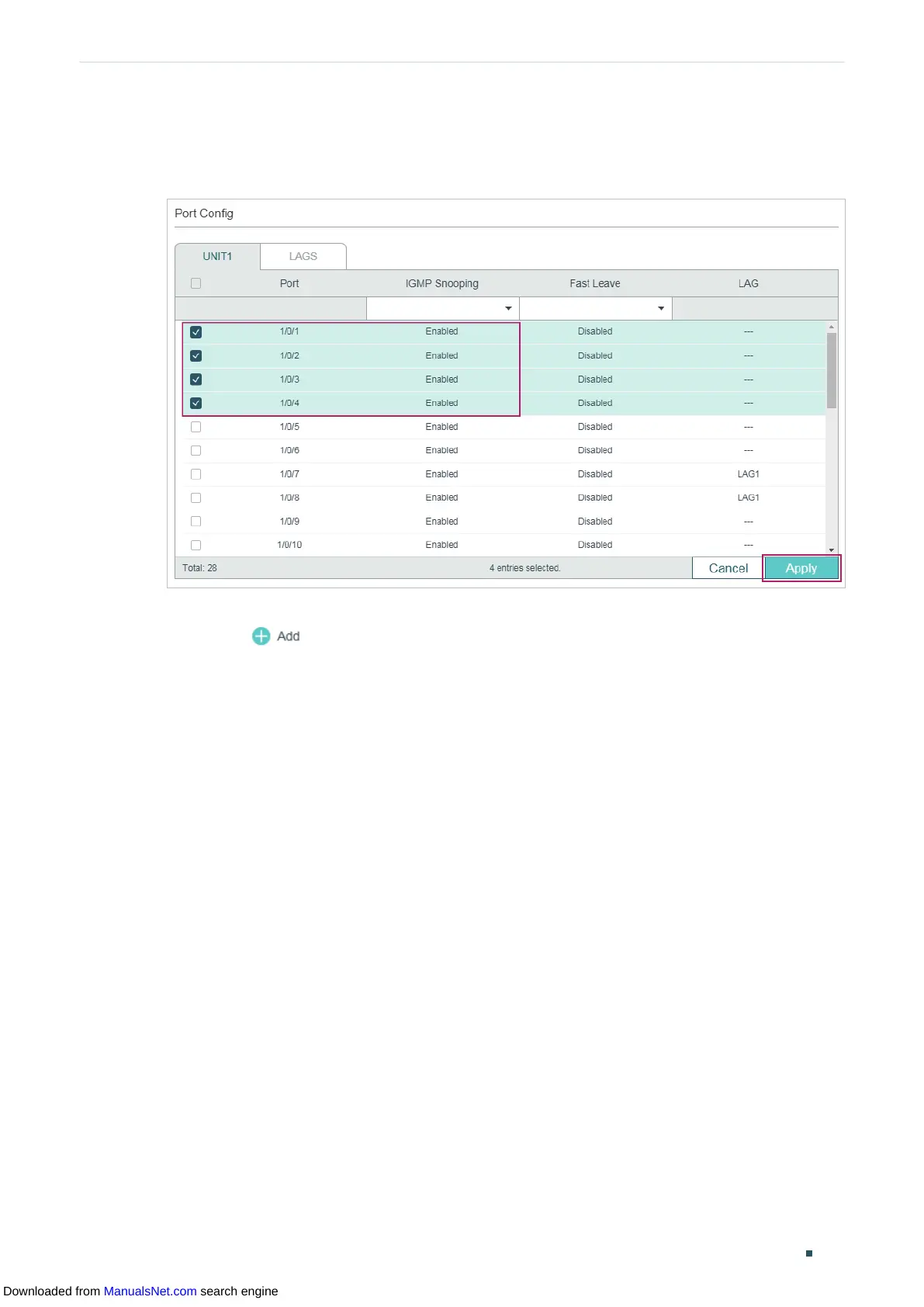

4) Choose the menu L2 FEATURES > Multicast > IGMP Snooping > Port Config to load
the following page.
Figure 7-21 Enable IGMP Snooping on the Port
5) Choose the menu L2 FEATURES > Multicast > Multicast Filtering > IPv4 Profile
and click to load the following page. Create Profile 1, specify the mode as
Permit, bind the profile to port 1/0/2-3, and specify the filtering multicast IP address as
225.0.0.1. Then click Back to return to the IPv4 Profile Table page.
