User Guide 548
Configuring AAA Configuration Example
3) Choose the menu SECURITY > AAA > Server Group to load the following page. C
lick
. Specify the group name as RADIUS1 and the server type as RADIUS. Select
192.168.0.10 and 192.168.0.20 to from the drop-down list. Click Create to create the
server group.

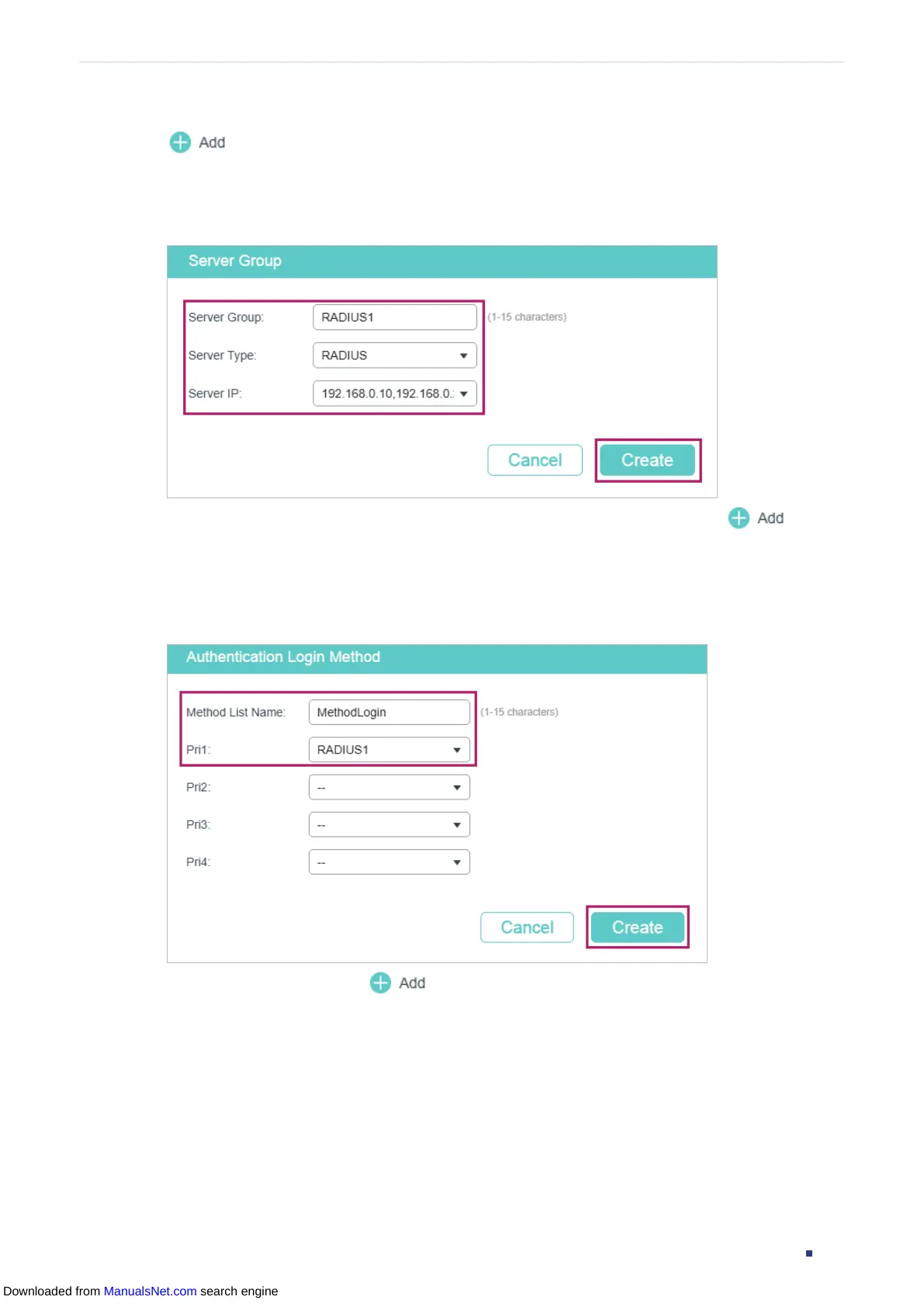

Figure 3-4 Create Server Group
4) Choose the menu SECURITY > AAA > Method List and click
in the
Authentication Login Method List section. Specify the Method List Name as
MethodLogin and select the Pri1 as RADIUS1. Click Create to set the method list for the
Login authentication.
Figure 3-5 Configure Login Method List
5) On the same page, click
in the Authentication Eanble Method List section.
Specify the Method List Name as MethodEnable and select the Pri1 as RADIUS1. Click
Create to set the method list for the Enable password authentication.
