Configuring ACL Configuration Example for ACL
User Guide 621

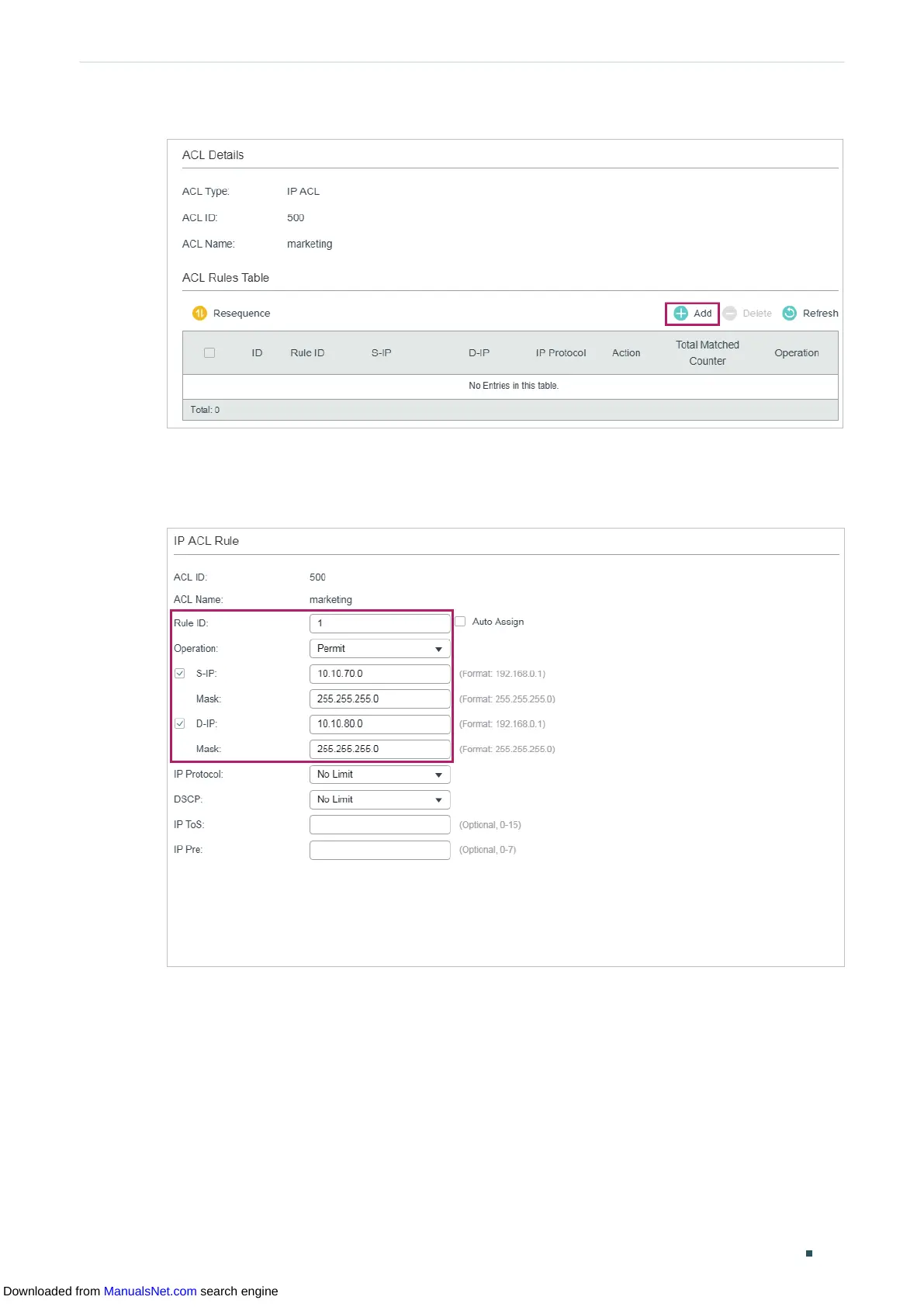

Figure 3-4 Editing IP ACL
4) Configure rule 1 to permit packets with the source IP address 10.10.70.0/24 and
destination IP address 10.10.80.0/24.
Figure 3-5 Configuring Rule 1
5) In the same way, configure rule 2 and rule 3 to permit packets with source IP 10.10.70.0
and destination port TCP 80 (http service port) and TCP 443 (https service port).
