Trango Systems, Inc. GigaPlus User Manual Rev 3.1 104

T1/E1 Statistics

Contains industry standard statistical information on each T1/E1 interface, updated

every 20 seconds. The information on this page only applies when the datapath is set to

Eth+T1 or Eth +E1.

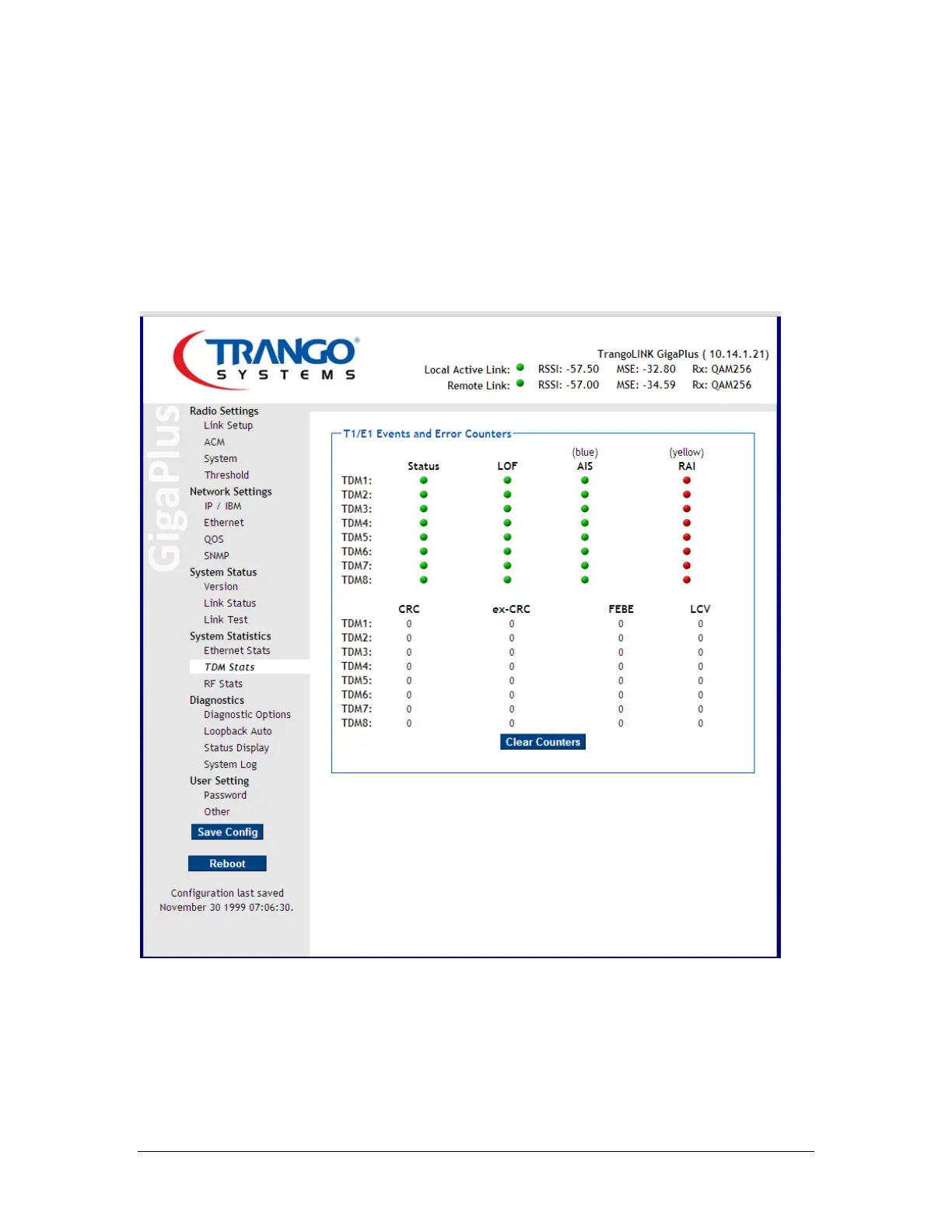

Figure 48 TDM (T1/E1) Statistics Page
