Trango Systems, Inc. GigaPlus User Manual Rev 3.1 212

T1/E1 Cabling

The Figure below show the cable pin-outs for T1/E1 cabling to interface to the RJ45

Jacks on the front panel.

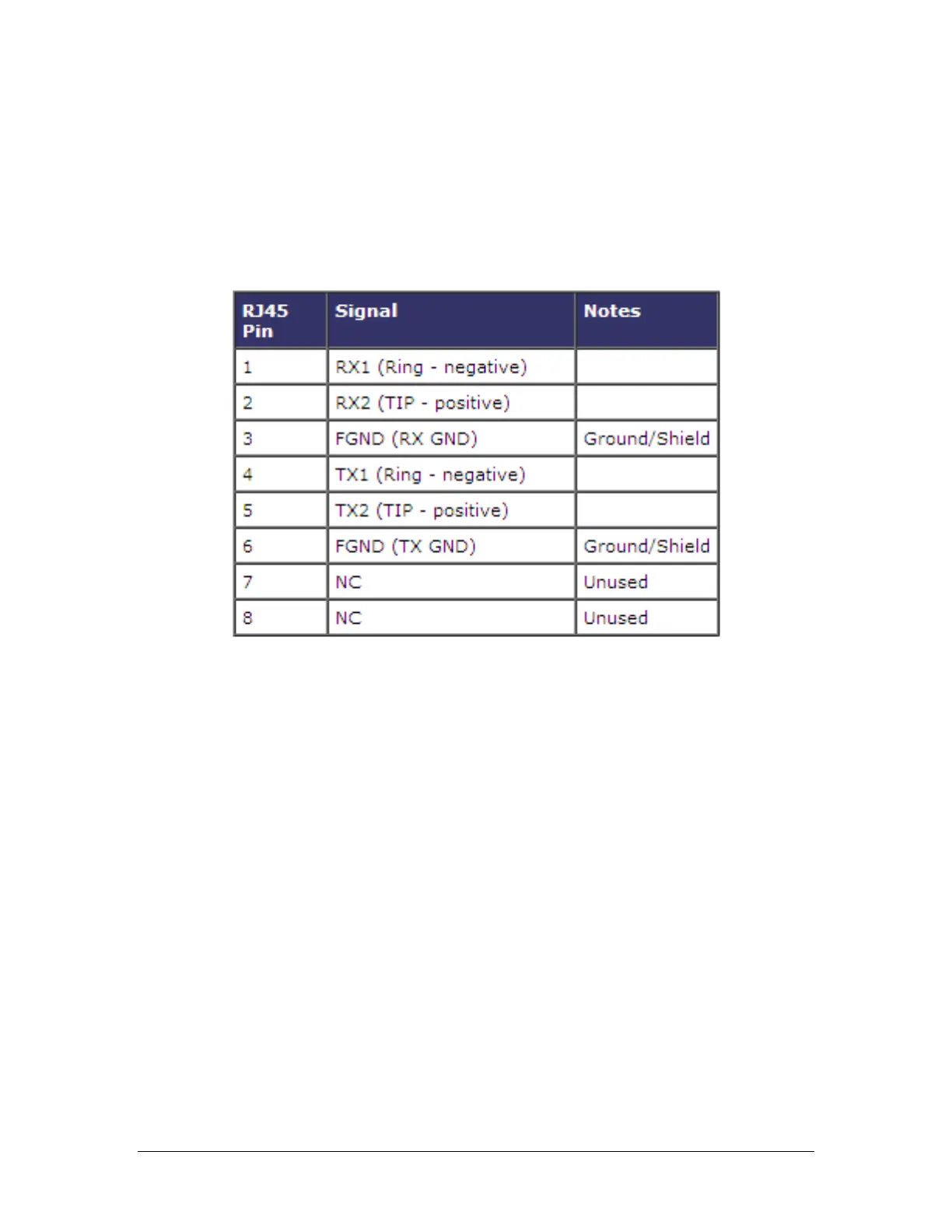

Table 14 T1/E1 Cable Wiring
