Trango Systems, Inc. GigaPlus User Manual Rev 3.1 99

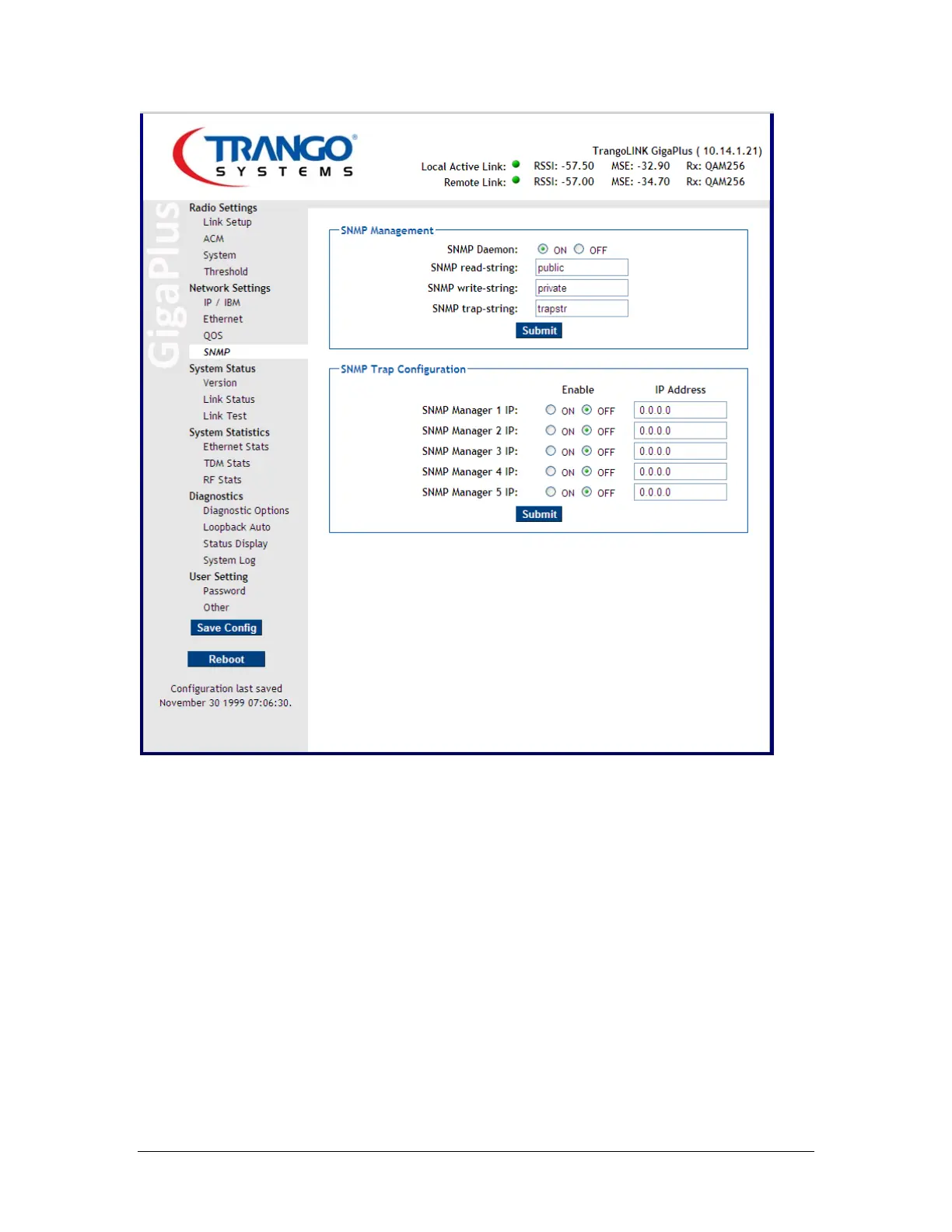

Figure 44 SNMP Setup Page

Status Monitoring Overview

The Web interface provides many ways to look at the status of the traffic flowing across

the link and the health of the link. The following Figures show the various counters that

can be monitored.
