Trango Systems, Inc. GigaPlus User Manual Rev 3.1 96

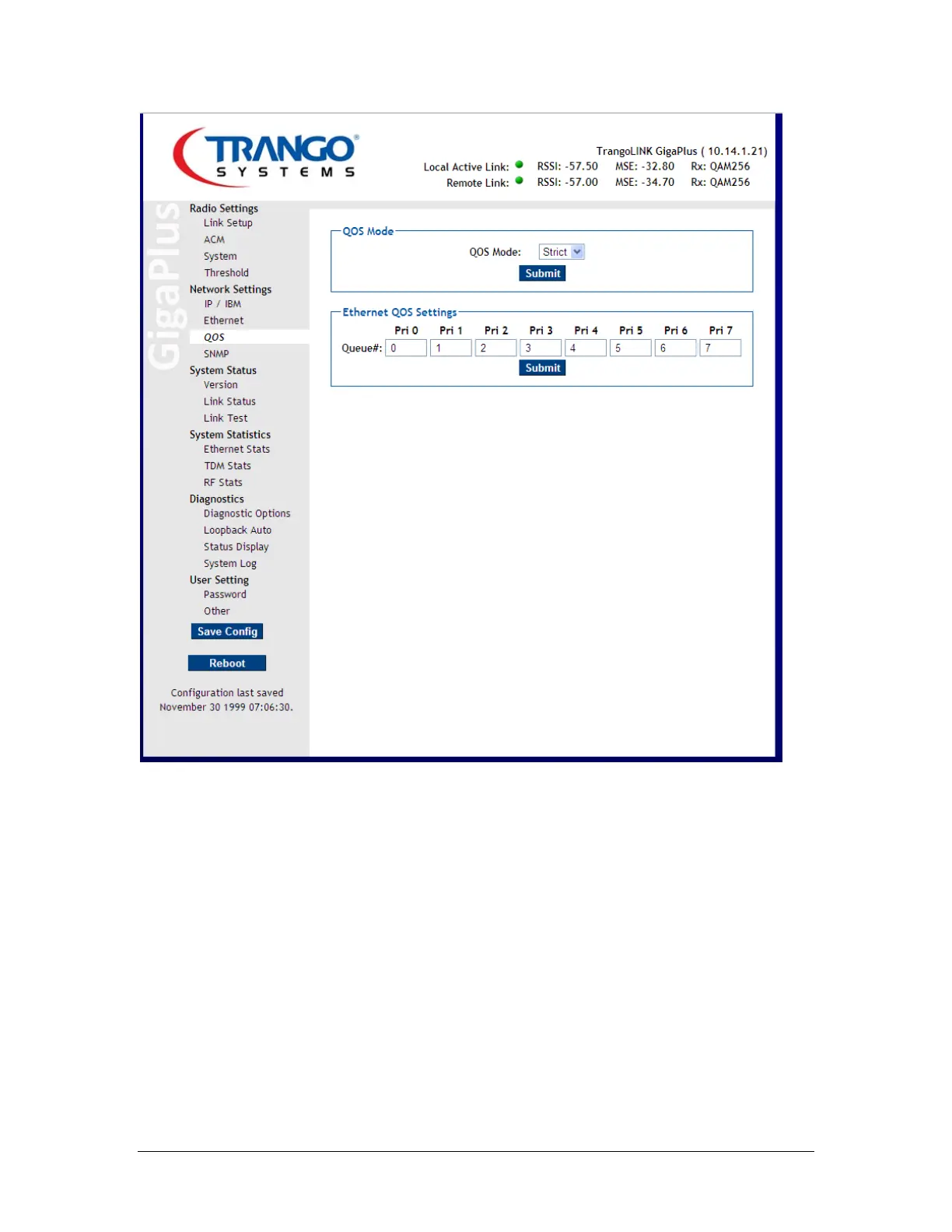

Figure 42 QoS Setup Page for Strict mode
DCSP Value Mapping
The QoS page with WRR mode selected will reveal all the DSCP values and drop down
boxes to select which priority they should be mapped to. This is done for each Ethernet
port individually by selecting the ETH1 to ETH4 tab in the box. For convenience,
common class identifiers are shown along with the corresponding DSCP value below:
