Adaptive Coding and Modulation (ACM) (Optional)

Enabling ACM permits configuration of the MSE Improve and Degrade thresholds. It is

recommended to use the default values for best performance. Select the “On” button

and then click on the submit button to make the change if ACM is desired.

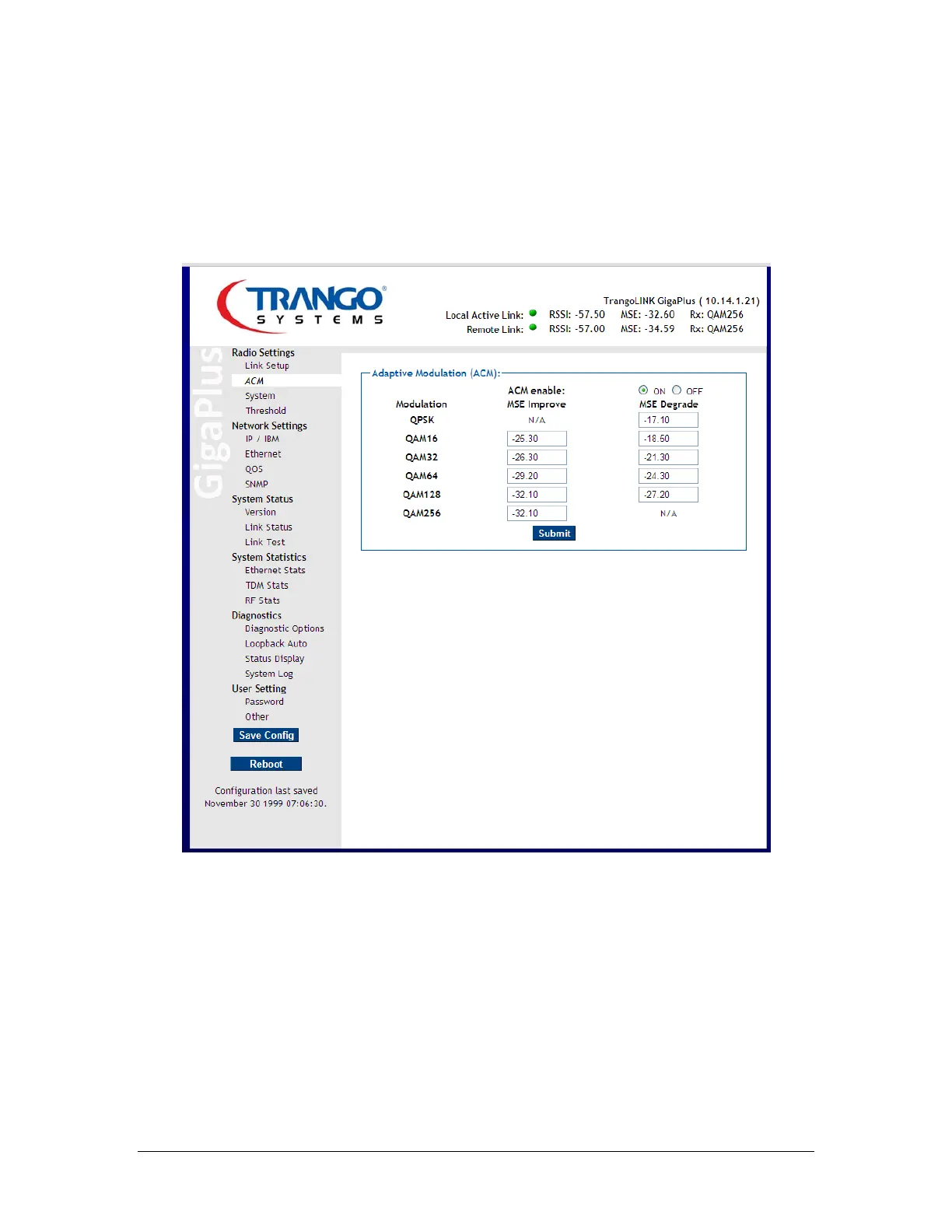

Figure 38 ACM Setup
