Trango Systems, Inc. GigaPlus User Manual Rev 3.1 95

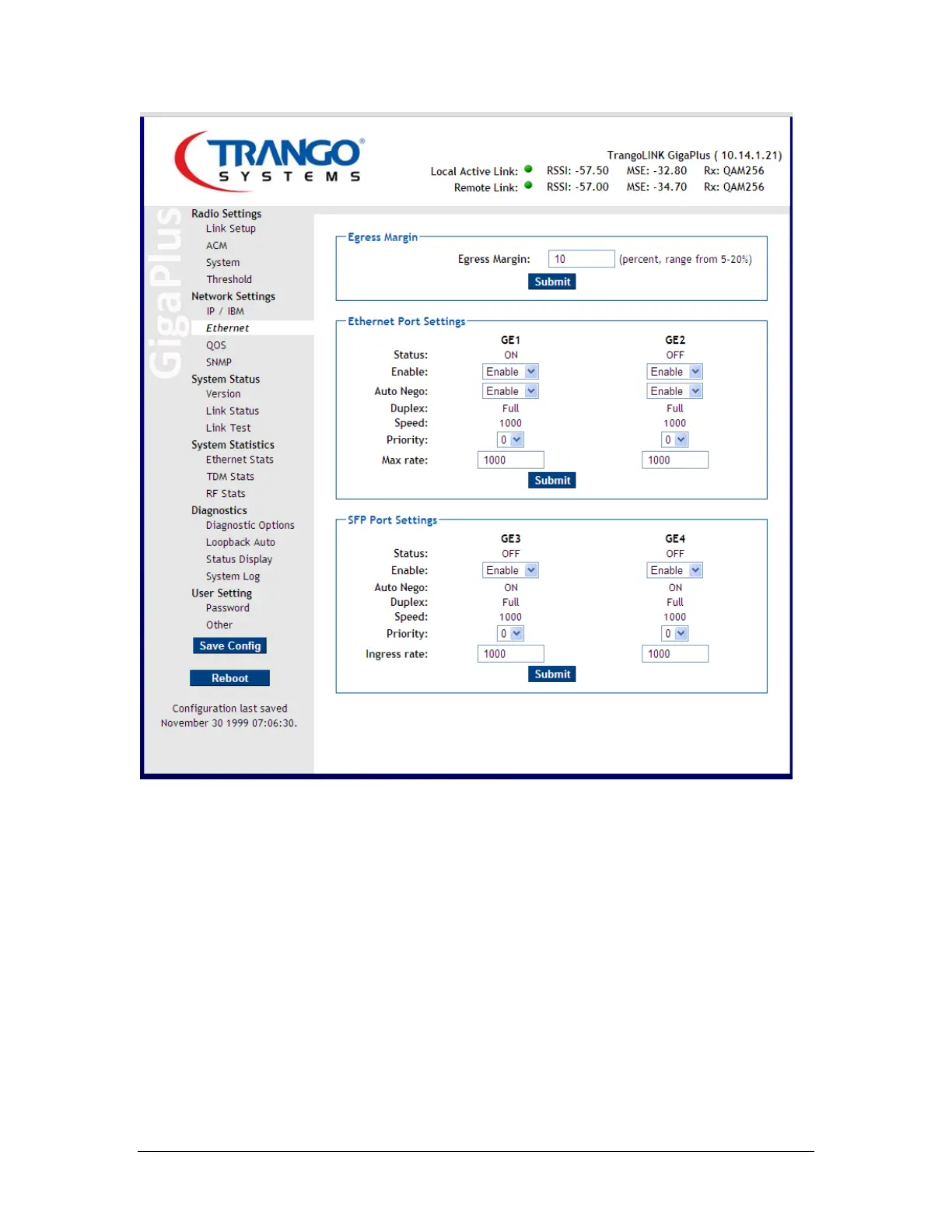

Figure 41 Ethernet Setup Page
Quality of Service Setup
The QoS page allows the QoS setup for all incoming traffic. Two modes are selectable-
Either Strict or Weighted Round Robin (WRR). Strict will ensure that all higher priority
queues are emptied before sending any packets from lower priority queues.
The incoming priority levels can be mapped to the queues in the Ethernet QoS Settings
box. For WRR Mode, the Diffserv tag in the incoming IP packets can be used to map the
packet to a priority, and then to a queue .
