8.4 Mechanical Speciﬁcations

Table 64 WMT700 Mechanical Speciﬁcations

Property Description/Value

Dimensions (H × W × D) 350 × 250 × 285 mm (13.78 × 9.84 × 11.22 in)

Weight

WMT700 wind sensor 1.8 kg (4.0 lb)

Mounting adapter 0.3 kg (0.7 lb)

WMT70FIX mounting kit 1.4 kg (2.2 lb)

Materials

Body and arms, mounting kit Stainless steel AISI 316

Transducers Silicone

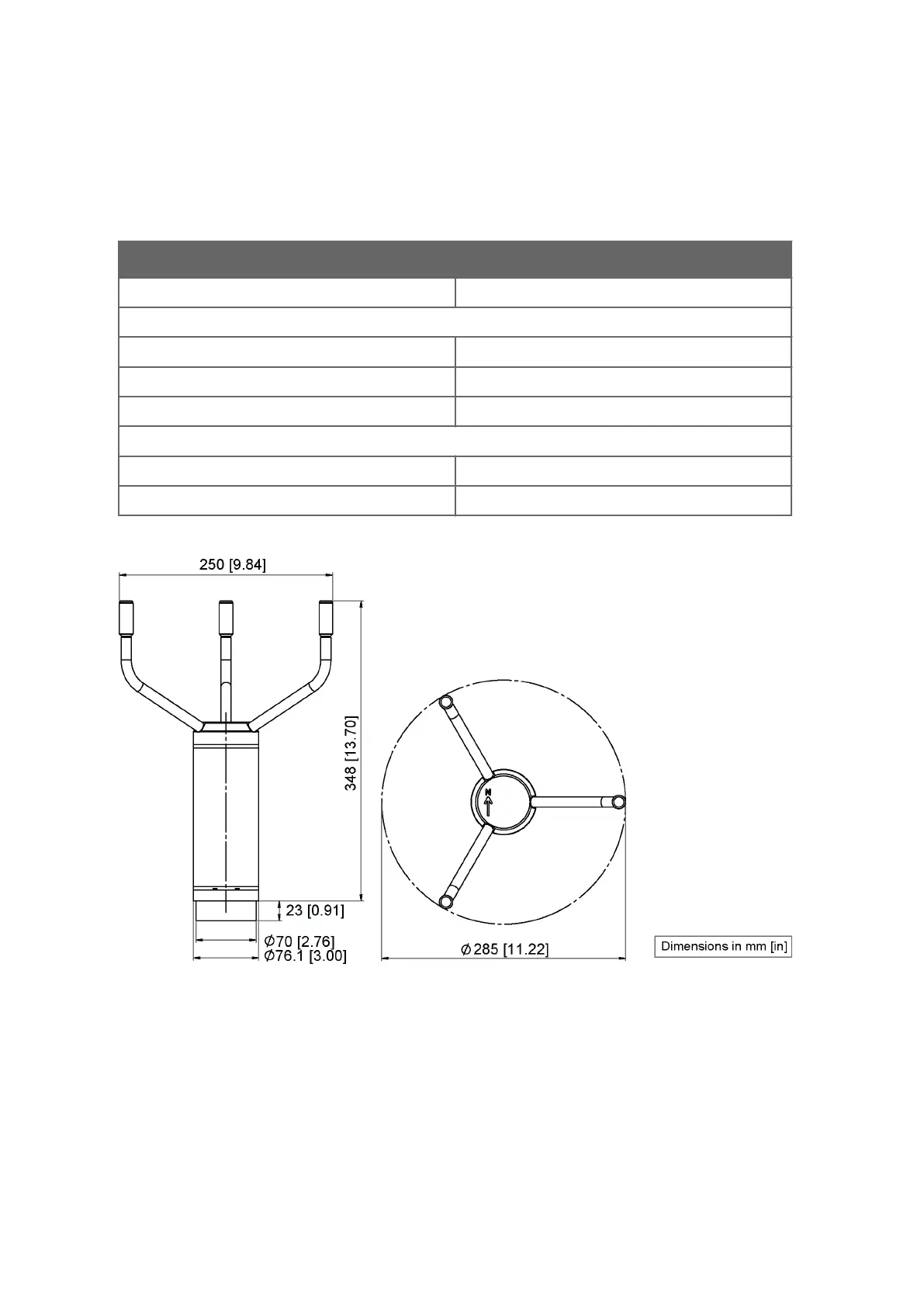

Figure 46 WMT700 Dimensions

WMT700 User Guide M211095EN-H

176
