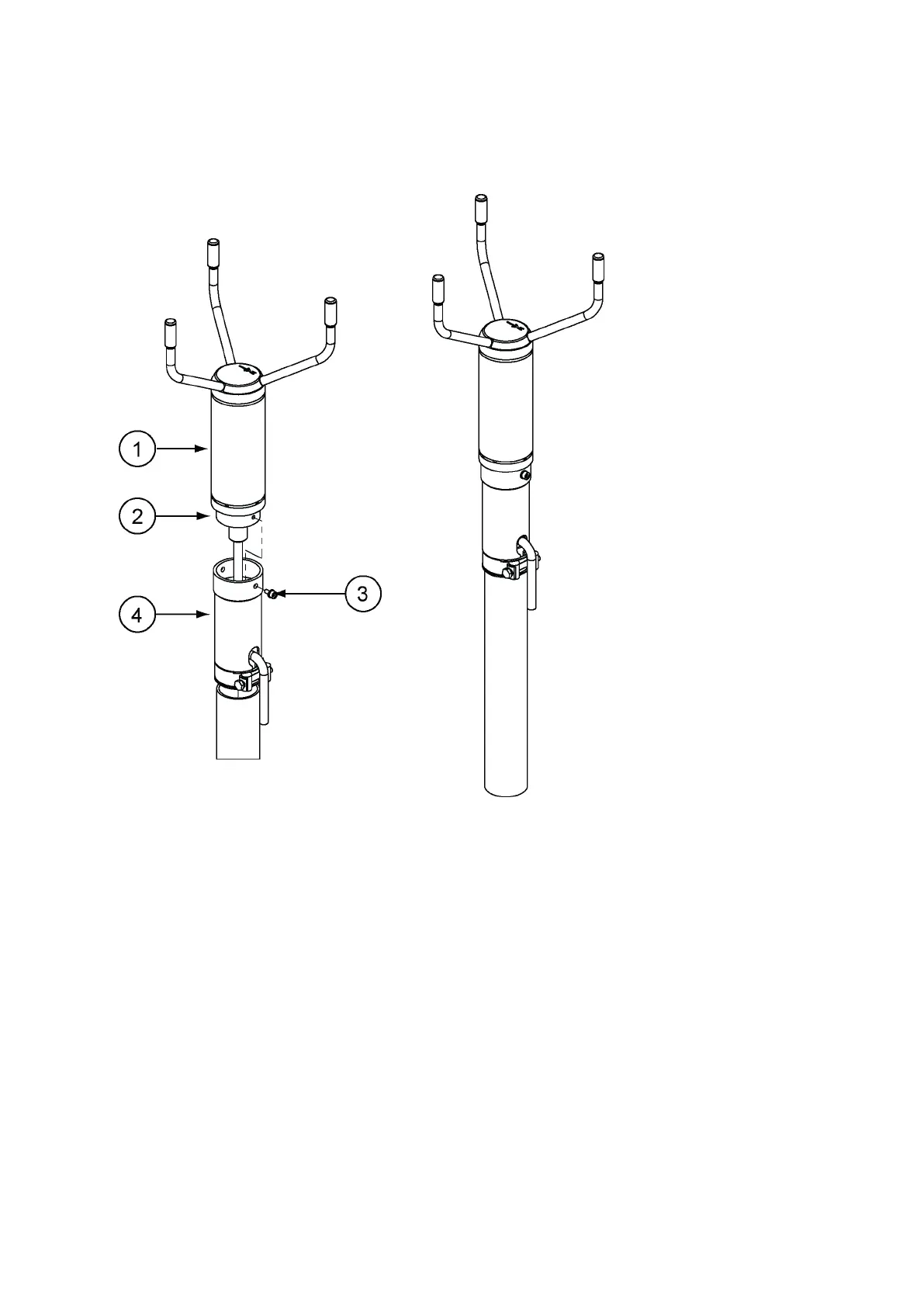

The follo
wing
figure
show
s the mounting procedur
e to a v
ertical pole mast.
Figure 3
7
Retrofit
Installation to P
ole Mast
1
WMT700
2
Mounting adapt
er for FIX30/
60
3
Mounting scre
w
4
WS425 mounting kit
WMT700 User Guide
M211095EN-H
84
85
87
