2.4.4 Cable Tightening Tool

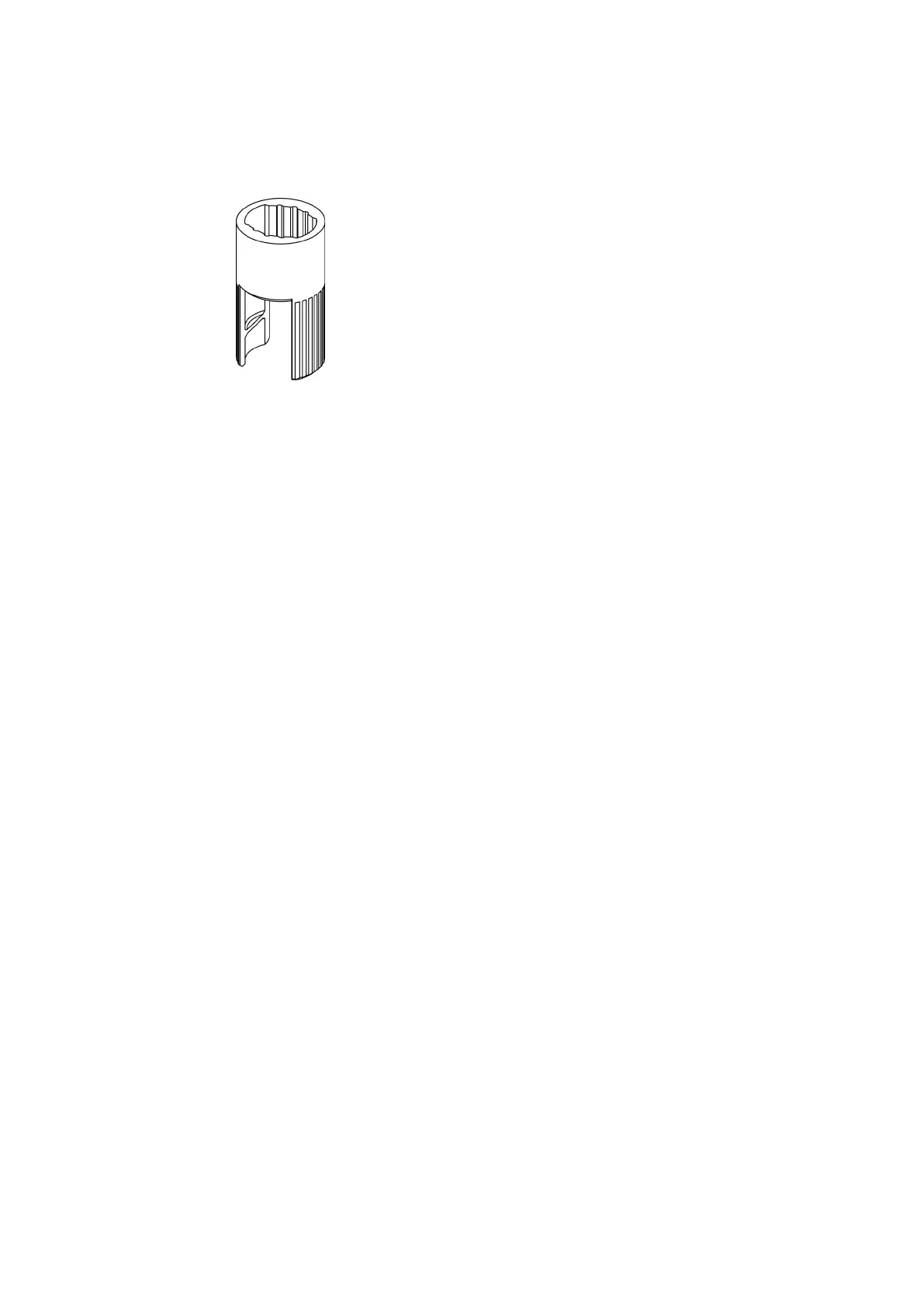

Figure 11 Cable Tightening Tool

WMT700 is shipped with a cable tightening tool (237888SP). When you insert a cable in the

cable tightening tool, it is easier to grip and rotate. After tightening, you can leave the cable

tightening tool in place.
