In maritime environments, the normal input voltage ranges are: operating voltage

10 … 30 VDC (-10% … +30%) and heating voltage 24 … 30 VDC (-10% … +30%), as deﬁned

in the maritime standard IEC 60945.

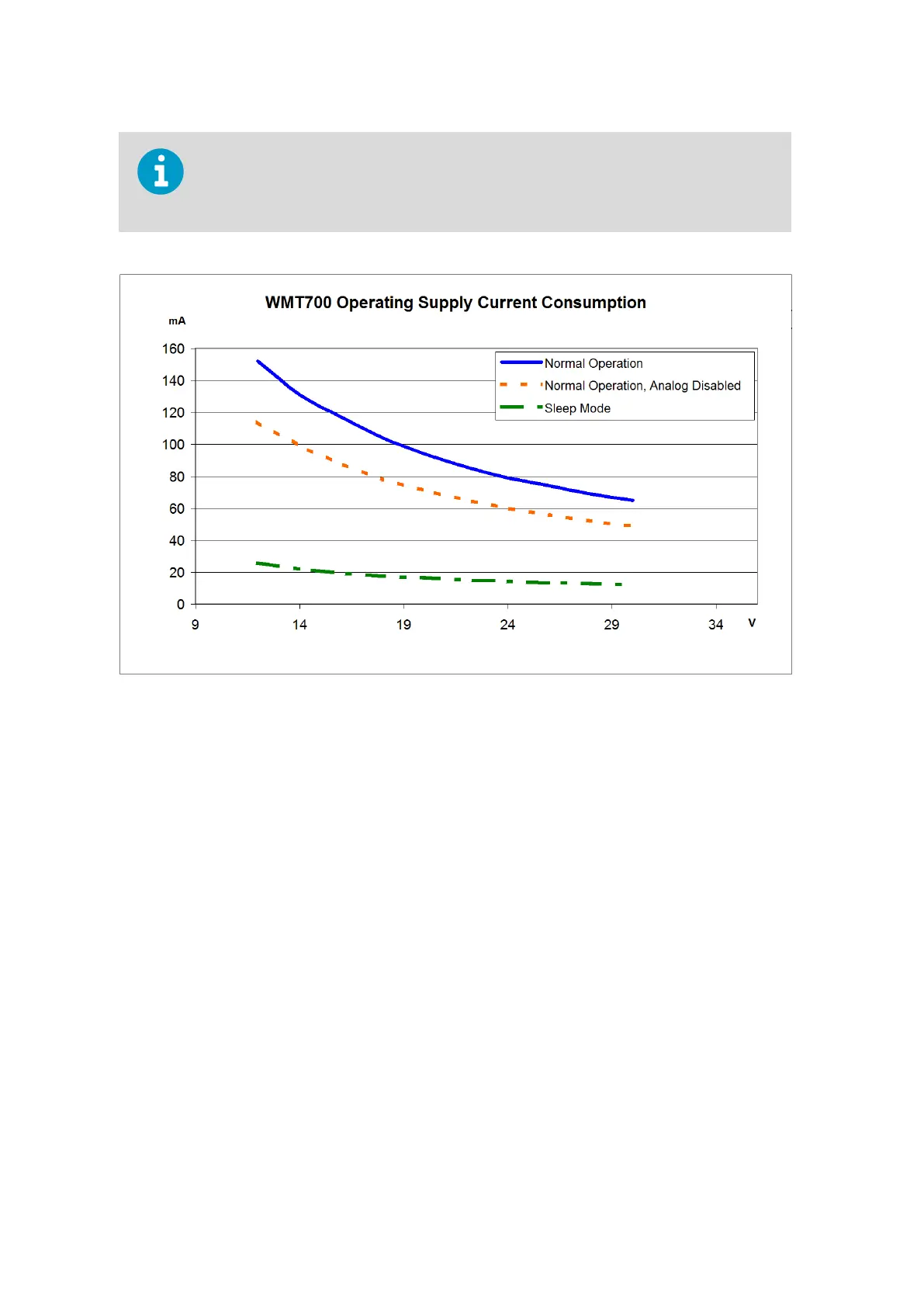

Figure 33 Operating Supply Current Consumption
