Vaisala WINDCAP WMT700 Series - 4.7 Aligning WMT700

To Next Page

To Previous Page

Mounting WMT700 with the array facing down protects the sensor better against the

accumulation of snow and interference from birds. The adapter drains located at the bottom

of WMT700 prevent water from accumulating inside the mounting adapter.

1. Make sure that the cable is ﬁrmly connected to the sensor.

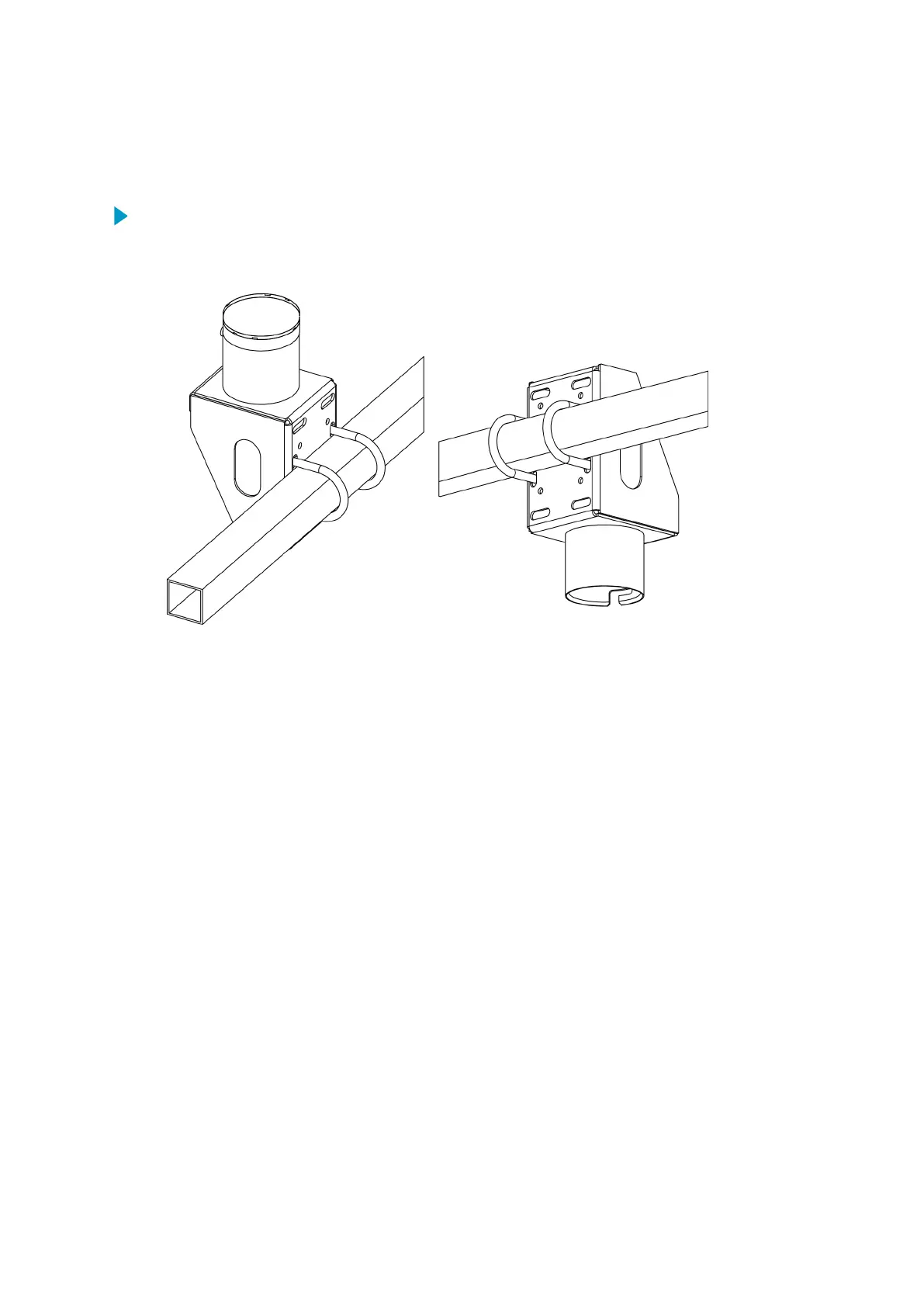

2. Attach the WMT70FIX mounting kit to the sensor support arm or cross arm with the

U bolts and insert the U bolts in the slots of the mounting kit.

3. Check that the mounting kit is not tilted to either side and tighten the U bolts ﬁrmly.

4. Haul the sensor up.
