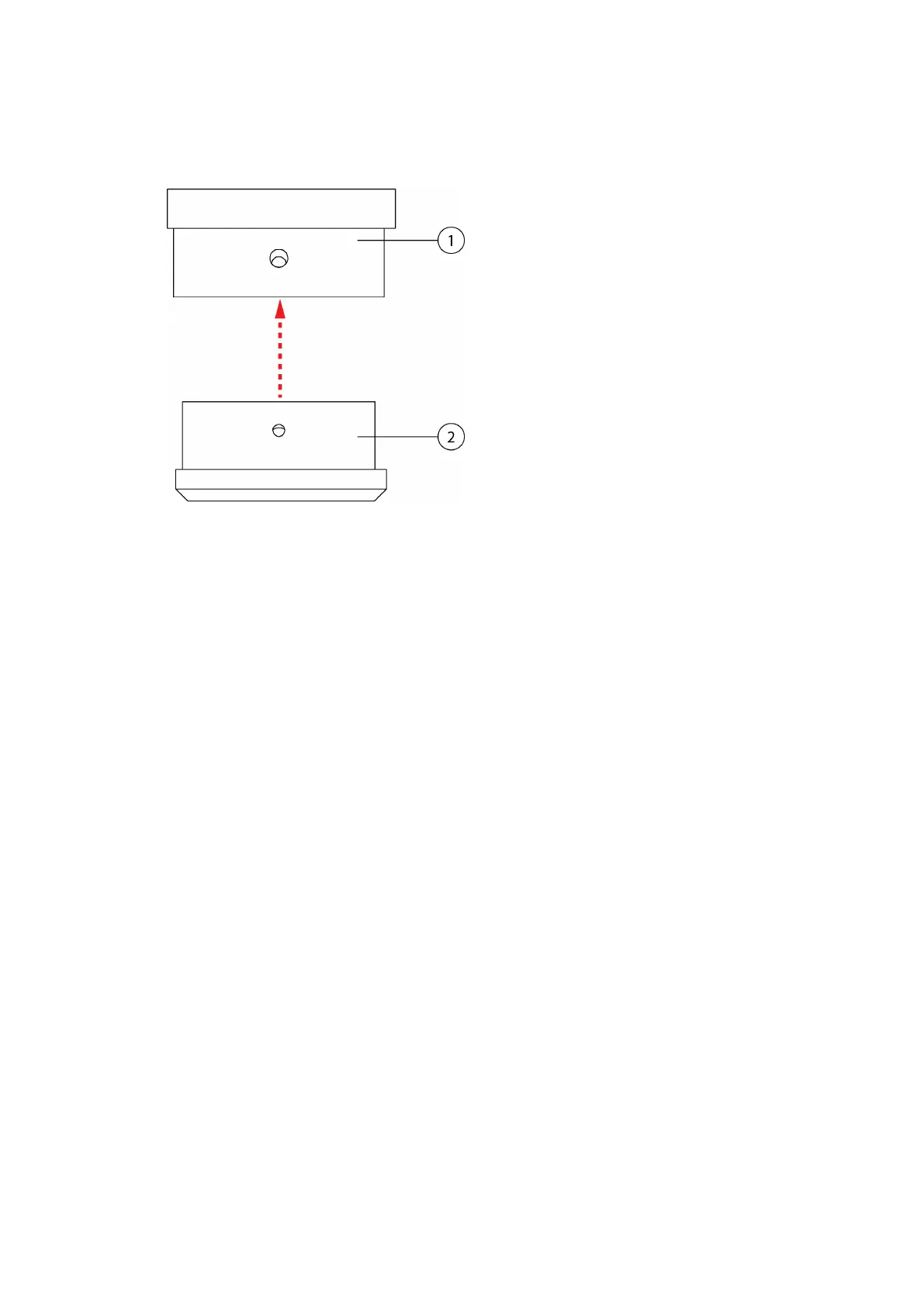

2. Insert the ASOS mounting adapter into the WMT700 adapter (228869). The ASOS

adapter slides into position.

1 Adapter for WMT700FIX,

WMT700FIX-POM, and

WMT700FIX60-RST (228869)

2 ASOS mounting adapter

(ASM212140)

3. Rotate the adapter until the screw holes are aligned. Insert the screw and tighten it.
