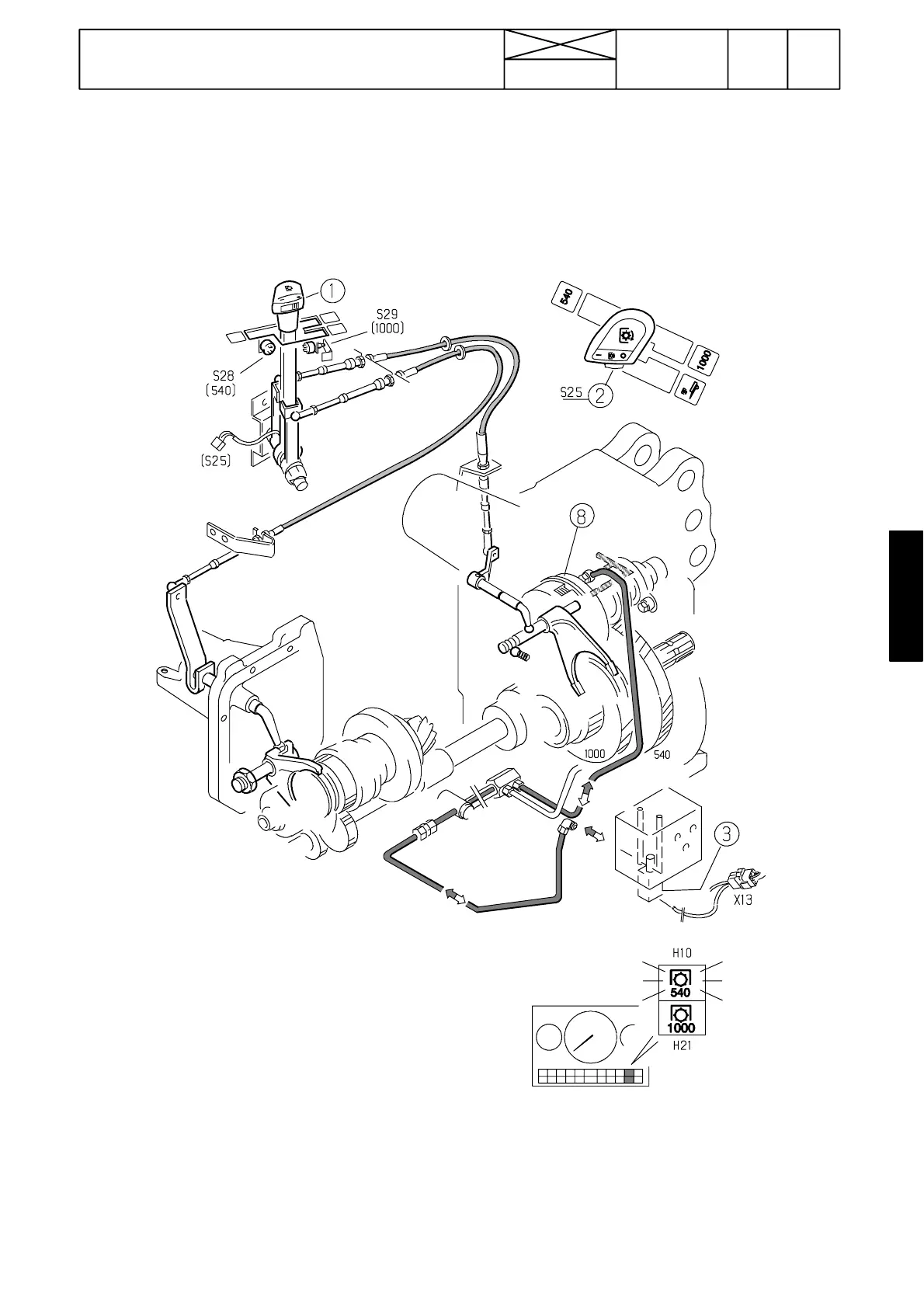

Picture 8. Engagement of PTO with effect from tractor ser.
no. 660071.
1. Control lever
2. Switch
3. New servo valve block, see also pages 420/17 ---20.
8. Multi ---disc clutch of PTO
From tractor serial number 660071 there is a new servo
valve block on the gearbo x LH side. The cushioning valve
for the PTO clutch is fitte d inside the valve block. For func-
tion of the cushioning valve, see page 462/9.ThePTO
solenoid valve is fitted on the lower side of the valve block.
825
Model Code Page
46. Power take ---off
6000--8750 460 11
15. 5. 1993
