Valtra 6550 - Fuses and Relays; Circuit Card, Fuse Box

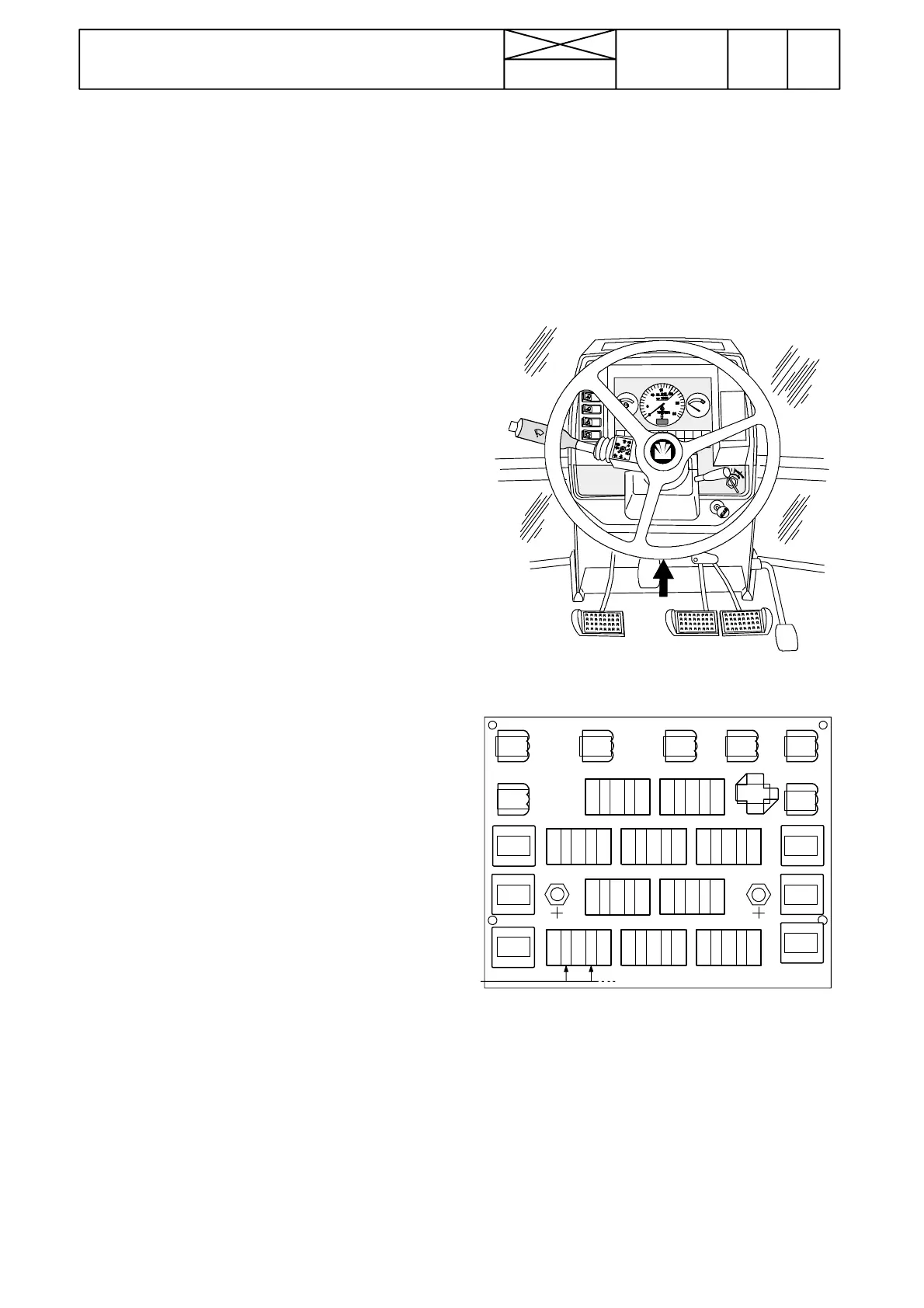

Position of fuse box
Circuit card, fuse box
(The fuse diagram is placed under the fuse box)
With effect from ser. no 662343, frames of relays K3
and K7 change places.
Note! From ser. no. F50112 incl. the circuit card in the
fuse box has been changed. At the same time wire
looms have been modified. The new circ uit card is
interchangeabl e with the ear lier one , except on older
AC IV tractors , on which wire 353 yellow (between
pins X6/2 ---X6/3) must be removed when the new cir-
cuit card is fitted.
Spare part numbers:
--- new circuit card 31542330......
--- earlier circuit card 31542320.....
40
Model Code Page
31. Tractor electrical system
1. 9. 2002
6000--8950 310 2
1. 6. 1999
Fuses and relays
The fuse box is placed under the instrument panel. The fuse
box shoul d always be kept clean. It contains 30 fuses. The
nominal current rating of the fuses is 5---20 A. If any of the
fuses blow, the fault must be traced and remedied. Fuses
must not be replaced with o nes of higher a rati ng, since this
may cause damage to the electrical equipment. There are
space for reserve fuses between the fuses.
Important! Fuses on E ---models, see section 34 (Autocontrol
III) or section 35 (Autocontrol IV)
Fuses
F1 15 A Hazard warning flashers, (water pump)
F2 5 A Clock, radio, tachograph, CareTel
F3 15 A Main beams, ---indicator light
F4 15 A Dipped beams
F5 10 A Parking light, left
F6 10 A Parking light, right
F7 25 A Front working lights
F8 25 A Light switch
F9 15 A Trailer socket/rear fog light
F10 25 A Ignition switch, thermostart (3 pole socket)
(not HiTech and AC 2.2)
F11 5 A Hydraulic power lift (+bat), buzzer (AC2)
Not HiTech.
F12 10 A Rotating warning light, cab light,
AC 2.2, HiTech 2.0: radio
F13 10 A Brake light. 662343---, reserve (AC II, 2.1, 2.2)
F14 15 A Reserve (water pump). HiTech and AC 2.2:
Ignition switch, t her mos t ar t
F15 25 A Fan III---speed
F16 10 A Rear working lights, inner
F17 10 A Directio n indicators, (Agrodata) , FieldMaster
Not HiTech.
F18 5 A Instruments, warning lights, Autocontrol
F19 10 A Combination control, wiper return
AC 2.2: Windscreen wiper/washer, horn
F20 10 A Rear window wiper/washer. Radio.
F21 15 A Fan I, II, air conditioning, floor fan
F22 10 A Solenoid valves. 662343---, 4WD, PTO, Delta
Power Shift (AC II), front PTO, 4WD (HiTech).
Sensors (HiTech).
F23 10 A Rear working lights, outer
F24 10 A Reserve. 662343---, speedometer (AC---4 unit)
AC5, hand brake (HiTech). Seat direction.
F25 15 A Air suspension seat, seat heating, reverse drive
control lock
F26 10 A Reserve (electronic air filter)/reverse buzzer,
Sigma, Hi Shift.
F27 10 A Reserve. 662343---, brake lights, diff. lock (AC II)
F28 10 A Reserve (telephone). 2 A if handsfree.
F29 10 A Cigarette lighter, 2---pole power socket
F30 10 A Rear fog light (reserv) (AC---4 sensors), CareTel
1 A, if handsfree.
(F31) 15 A Electric air filter.
F50 25A Stop solenoid, 8950.
(F51) Main current switch, control, in engine
compartment.
Relays
K 1 relay, front working lights
K 2 relay, rear working lights
K 3 control relay, diff. lock/4WD . 662343 ---, fog lights
K 4 relay, starter switch
K 5 relay, starter switch
K 6 relay, fan III---speed
K 7 reserve. 662343---, relay for four wheel braking (AC II)
K9 interval wiper relay (in front of the fuse box)
K10 Relay direction indicators (in front of the fuse box)
K14 relay, starter motor (in engine co mpartment)
Relays K11, K12, K13, K15 and K16, see Autocontrol II under
code 311 or Autocontrol 2.2 under code 314.
K18 Control Stop, see under code 312 (AC 2.1)
K19 Relay for Σ ---power system (ETB), see code 313.
K24 Relay for Hi Shift, see code 412.
K27 Relay for 4WD in AC 2.2, see co de 314
K28 Relay for hand brake, see section 50 (in lever co ns ole)
Note! X1---X7, see wiring diagrams. Fuses and relays are also
listed in all wiring diagrams in this manual.
