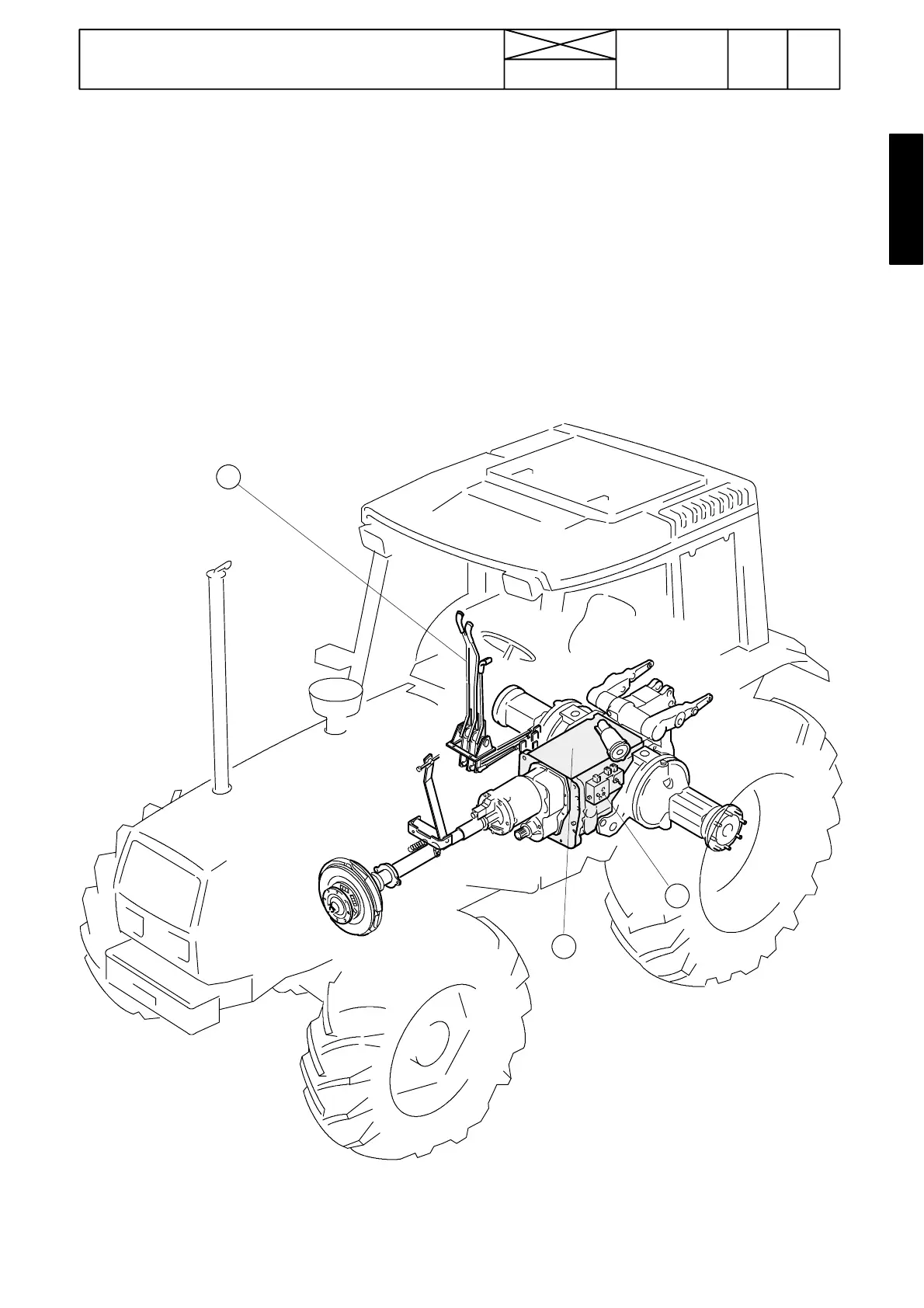

Figure 1. Power transmission
1. Gearbox
2. Gear levers
3. Servo valve block
671
Model Code Page
42 Gearbox
1. 1. 1995
5420
6000--8750
8. 11. 1990
Gearbox, description
Position of the gearbox is shown in the figure below. Reverse
shuttle and quick---shift gear are attached to the front of the
gearbox. Power take---off is attached to the rear end. Rear
axles are attached to the both sides of the gearbox.Differential
is fitted in the rear part of the gearbox housing.
The gearbox is operated mechanically with a speed gearlever
and range gear lever on the right hand side of the driver’sseat.
Gearbox has three ranges (LL---M---H) and four speed gears.
The reverse shuttle is operated with a separate lever.
The quick---shift gear doubles the number of speeds. The
Delta Powershift gear triplicates the number of speeds.
The gearbox is fully synchronized (except LL---range). Gear
wheels have helically cut teeth. Pressure lubrication.Separate
reverse shuttle.
1
2
3
