101. Special tools
1. 11. 1998
6000--8950
13101
1. 8. 1998
D P S --- P R E S S U R E , C 1
D P S --- P R E S S U R E , C 3
D P S --- P R E S S U R E , C 2

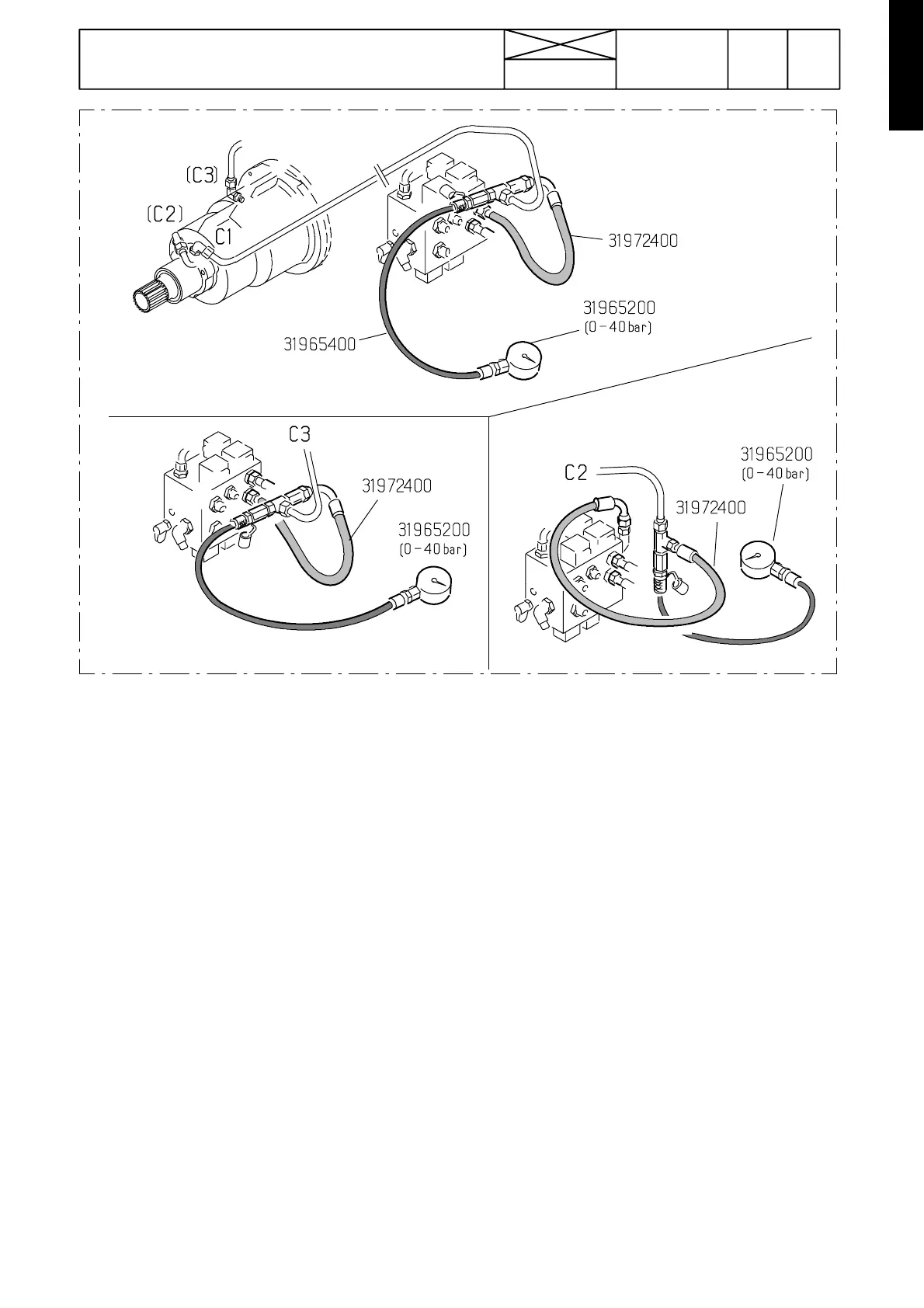

Measuring Delta Po wershift c lutch pressures on tractors which have the mechanical shuttle unit. Pressure in each clutch should
be 1,8---1,9 MPa.
C1=foremost clutch.
C2=middle clutch
C3=planetary gear clutch (rearmost clutch).
Note! If the tractor has HiTech Shuttle, all three DPS clutches have their own HPR test point and a pressur e gauge can be connec-
ted direct to the test points with measuring hose 31965400. Concerning the pressure test points, see page 440/25.
Note! Ontractorswhichhavethelockvalve(seepage420/20B), the oil piping deviates from the pictures above. The lock valve
is fitted in transmissions 460 and 650, but the lock valve is not fitted in the HiTech tractors.
