249
Model Code Page
67. Powered front axle Carraro
1. 10. 1999
8450--8950 675 1
1. 9. 2002
Reconditioning steering ram (Code no.
675)
Note! The steering ram must be removed, if the differential
is removed from the axle.
Note! From Carraro no. 0100631 --- incl. the steering force/
power has been added by changing the control valve and
the cylinder diameters 75/38x276 (was 65/36x276).
Because of this the cylinder o uter diameter has also been
enlarged, thus it is not exchangeable with the earlier cylin-
der.

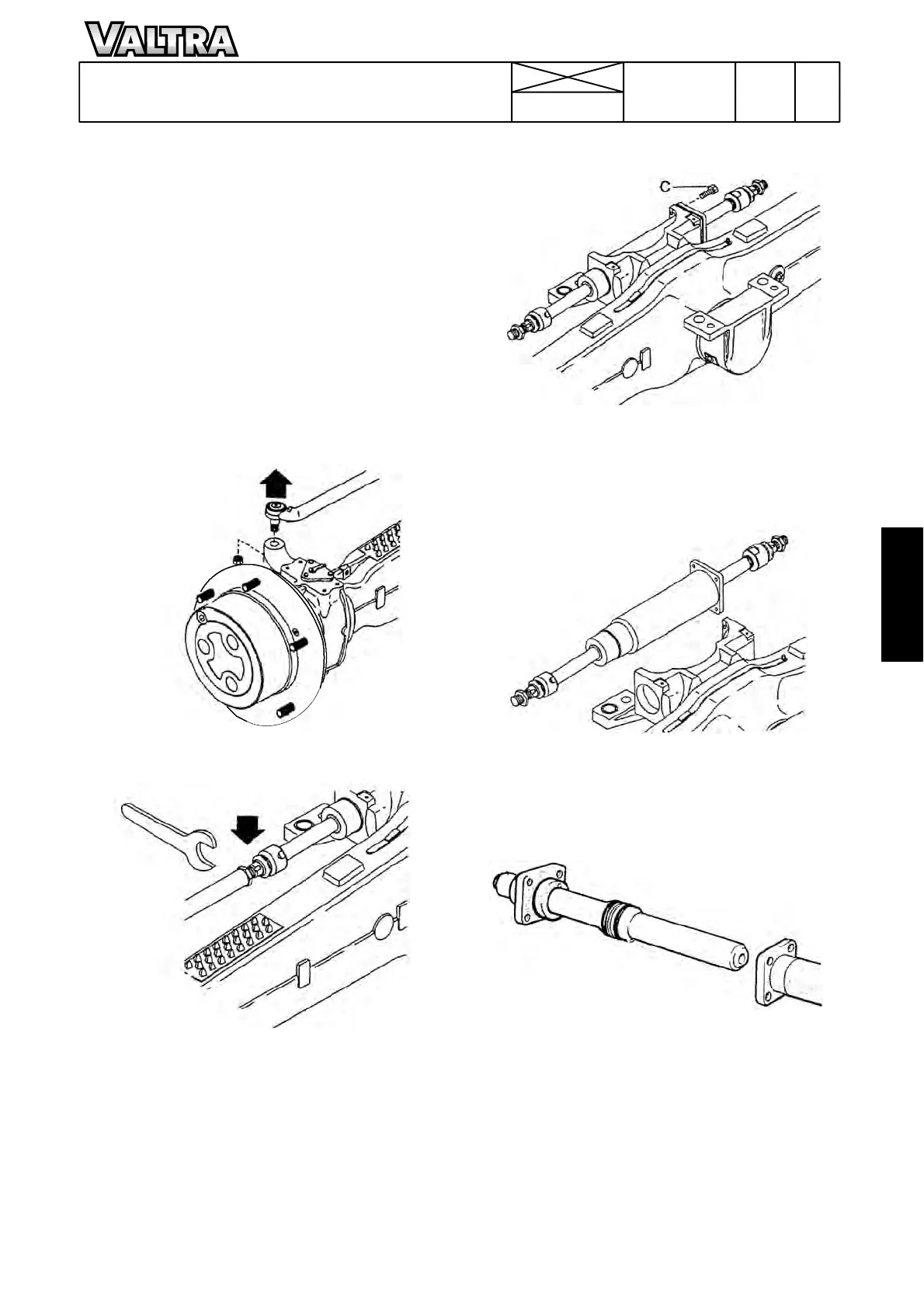

A. Reconditioning steering ram
1. Disconnect the tie--- rod tapered joint.
2. Disconnect the tie rod ball joint.
3. Disconnect the oil hoses on the ram.
4. Slacken some turns four bo lts (C). Turn the steering
wheel to the left at which time the ram end flange is pushed
out. Little oil can drain. Remove the bolts (C) and the ram.
5. The steering ram unit can be changed as a co mplete unit
or it can be repaired. Oil leakages can be repaired by
changing seals. A seal kit is available as a spare part.
6. Pull out the piston rod/piston. Slide away the left end
flange.
