42. Gearbox
8. 11. 1990
6000--8750 423 4

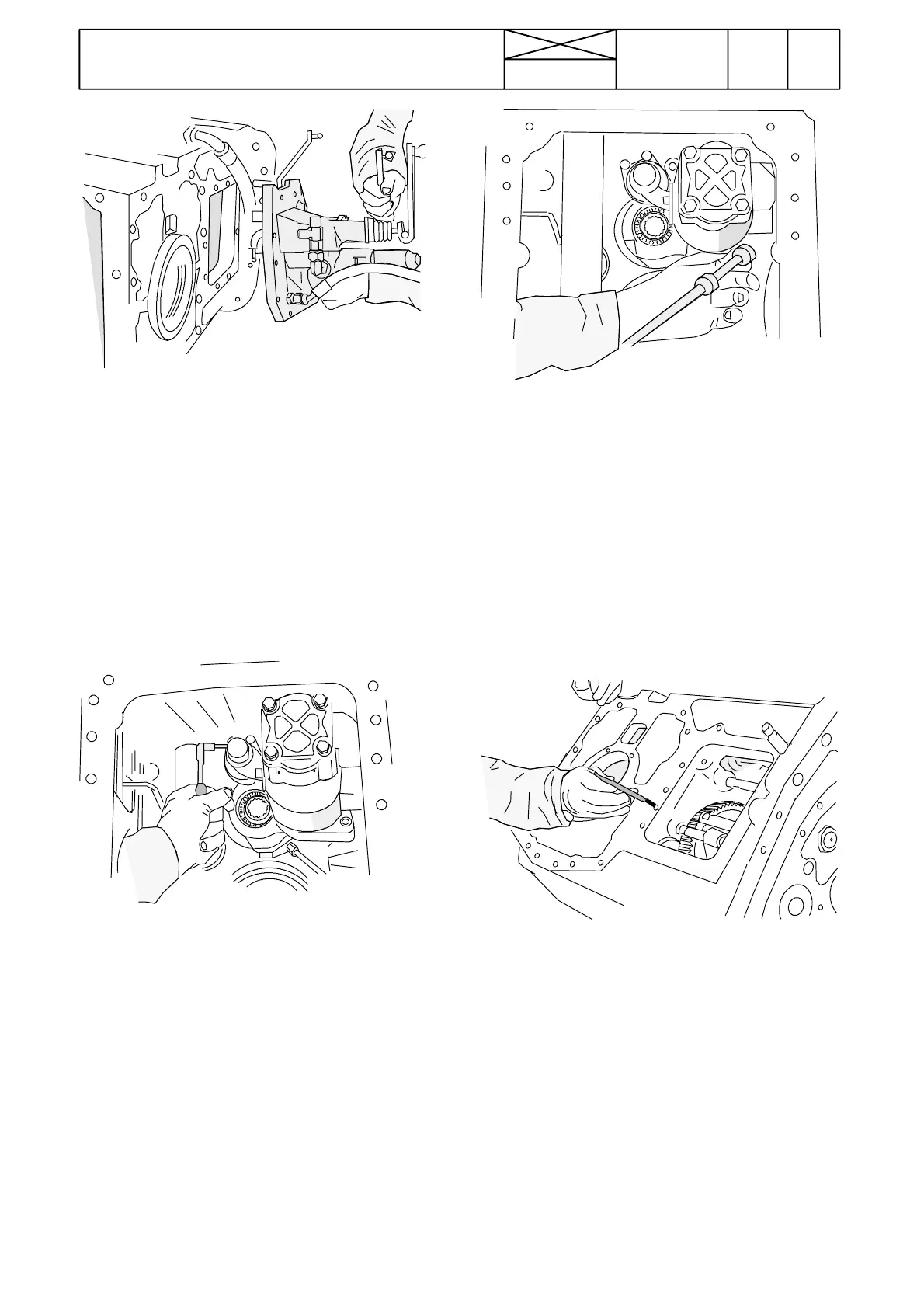

2433
1. Set all gears to neutral position. Unscrew the side cover
bolts and remove. At the same time selector fork rail locking
pins are released.
C. Removing hydraulic pump
Note! The pump can als o be detached from the tr actor after
removing the PTO unit (see section 90. Hydraulics).
2434
1. Loosen the suction pipe clip (hexagonal socket headscrew,
5 mm).
2. Detach the suction strainer housing on the gearbox and
remove the long suction pipe and the curve pipe.
3. Remove also the pressure pipe connections on thegearbox
(pipes have threads).
2435
4. Unscrew pump fixing bolts and remove the pump.
D. Removing selector forks
Note! If only selector forks have to be removed, then split the
tractor between the gearbox and fuel tank and remove the
reverse shuttle housing. Now the selector fork rails can be
removed forwards and the forks can be removed through the
side opening (see instr. on page 421/2).
1. Remove the selector fork rails as follows:
2438
--- remove pins, springs and balls (3 pcs) from their locations.
