243
Model Code Page
51. Brake system
1. 9. 2002
6000--8750 521 1
1. 11. 1998
2. Parking brake
Note! Adjusting parking brake on tractors with pressure air
system for trailer brakes, see instr. E on page 511/6.
Note! Parking brake on tractors with HiTech Shuttle, see
instruction B on pages 521/2---3.

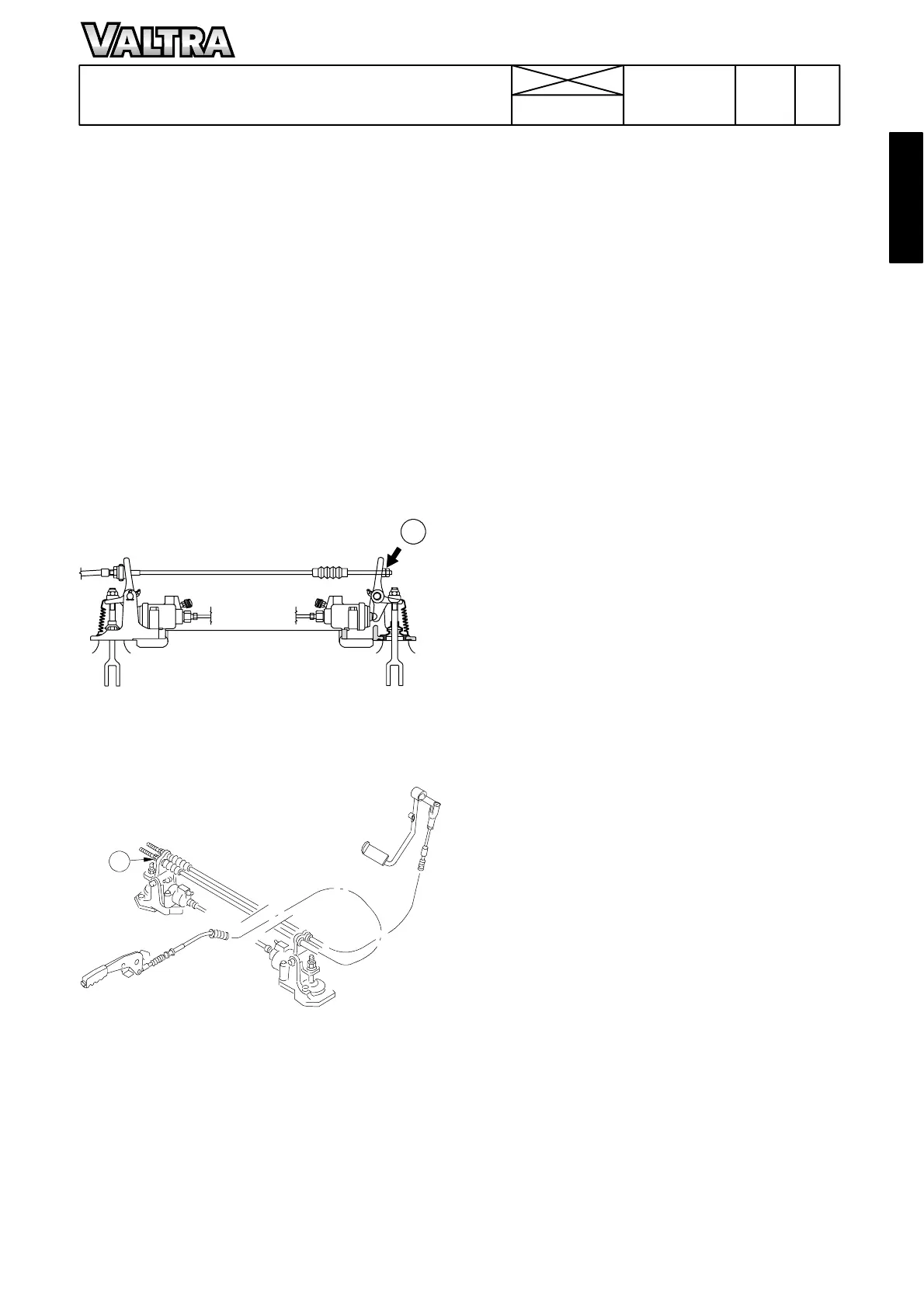

A. Adjusting parking brake (not HiTech tractors)
Note! The parking brake is contr olled mechanically and it is
connec ted to t he foot brake mechanism by a cabl e. The
parking brake is adjusted in the factory and re---adjustment
is not necessary unles s parts of brake mechanism have
been changed. The parking brake is affected when the foot
brakes are adjusted (see instr. 1B).
1. Before adjusting the parking brake, adjust foot brakes
(see instr. 1B on page 511/2).
2
2. Adjust the parking brake lever free travel to about 50 mm
(at the lever end) by turning the adjusting nut (2) at the rear
end of the cable.
2
Note! If the tractor has reverse drive controls (TwinTrac),
the parking brake adjustment is done with nut (2), but there
are two cables connected to brake mechanism. The other
cable is for the rear brake pedal.
