WAGNER Titanus Micro-Sens User Manual

TITANUS MICRO·SENS
®
Technical Description
06/13
27

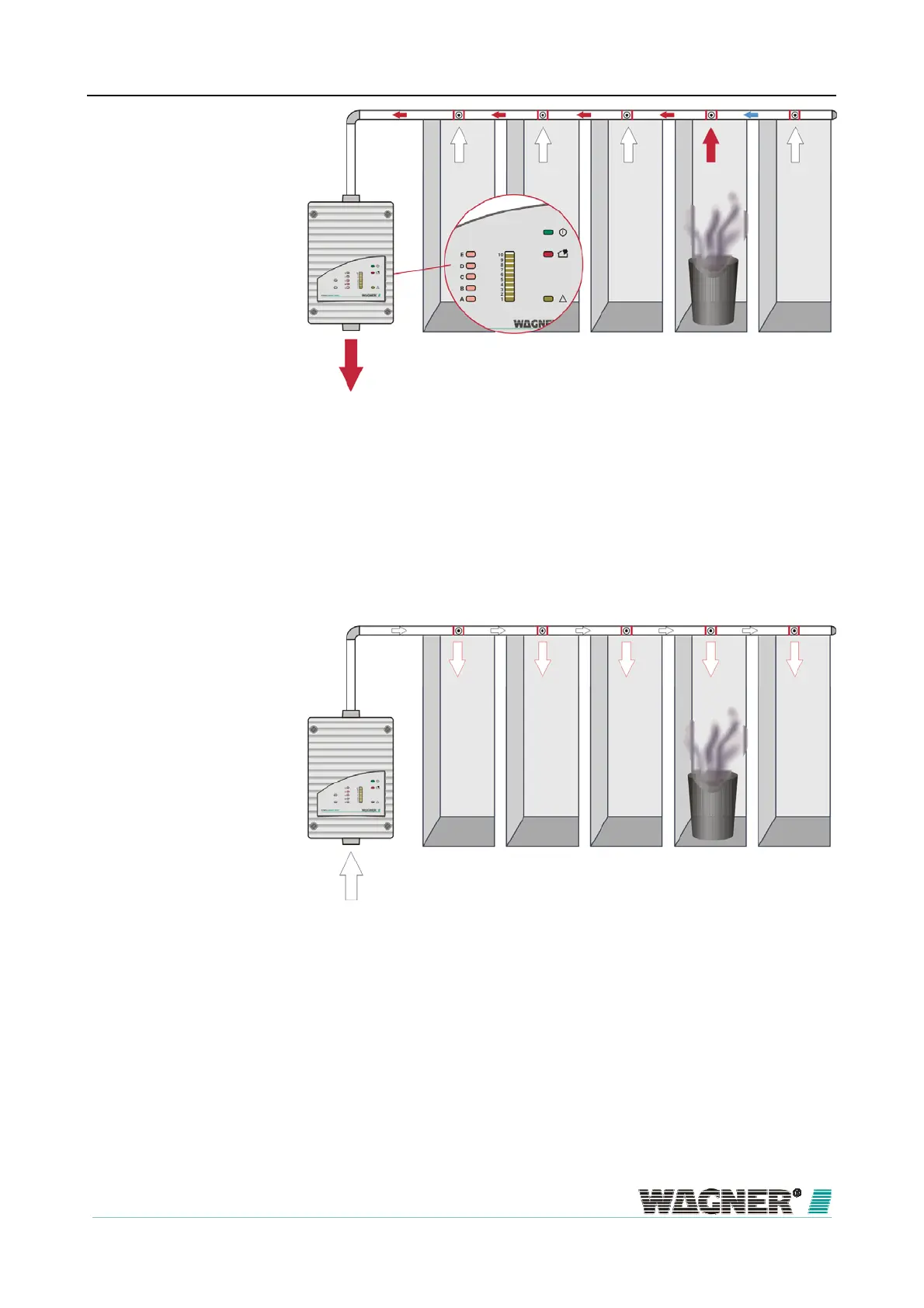

Figure 6: Phase 2 ROOM·IDENT earliest fire detection
In case alarm or at function „Fire alarm after ROOM·IDENT“ once the system
has reached the adjustable action the aspiration fan is switched off and a
second fan is switched on, blowing out the smoke particles in the opposite
direction.
Figure 7: Phase 3 ROOM·IDENT blow through
After the pipe system has been freed from smoke, the airflow is reversed
once again and the time it takes for the smoke to reach the detector unit is
measured. With this time value the exact location of the smoke source is
given and shows which room is affected.
Phase 3
Phase 4
