TITANUS
MICRO·SENS
®
Design
06/13
89
figure must be copied to every single sampling branch of other pipe forms
(U, M, double-U pipe system).
Referring to the project planning with burs please notice that the “critical
length” (l
krit.
)of a project planning does not exceed the maximum total length
of pipe respectively of branch (referring to U, M, double-U pipe system). The
critical length described the sampling point which is located most distantly
from TITANUS
®
.
Two aspiration apertures in total can be projected on each branch pipes at
which the minimal and maximum distance between the aspiration apertures
must be respected.
The opening diameters are valid for the projected aspiration apertures in ac-
cordance with the chapter „Opening diameter for standard project planning“.

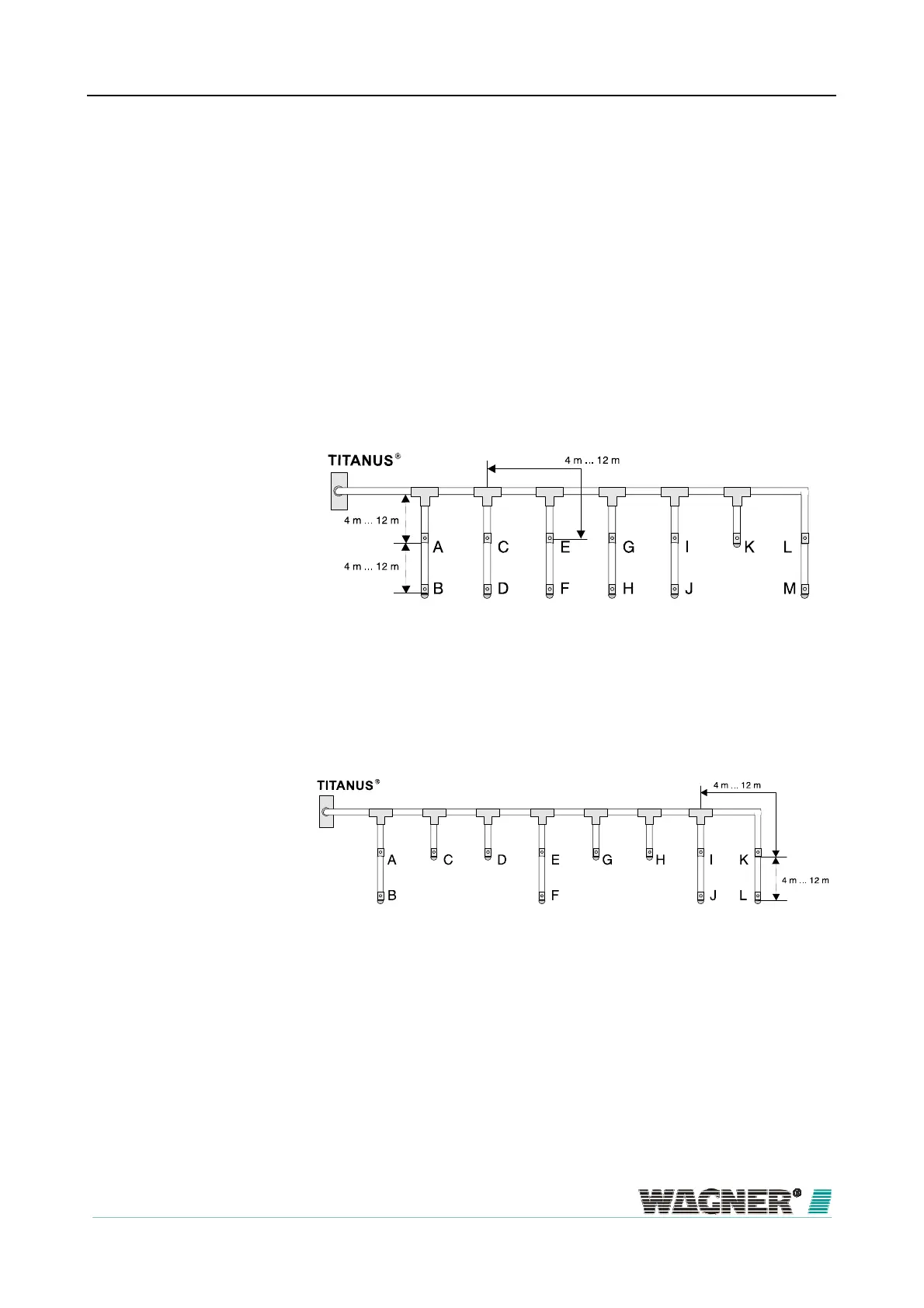

Figure 52: Distances of apertures with branch pipes
The distance between the T-piece and the following branch pipe as well as
the pipe length between aspiration apertures on the branch pipes must not
exceed 12 m in total.
Figure 53: Maximum branch pipe
The length of pipe between the last T-piece and the last aspiration apertures
is the length of branch pipe. All other branch pipes need to be shorter. Two
aspiration apertures in total can be projected on each branch pipe.
Opening diamete
Distances of apertures
Maximum length of branch
pipe
