3. (Figure 6): Reinstall the Sump Shield in the
Developer Module.
4. (Figure 7): Reinstall the Top Shield, taking care
not to overtighten the screws.
Reinstall the Sump
Shield
Reinstall the Sump Shield
under the edges on the
housing
Tighten the
screws (2)
Reinstall the
screws (2)
Reinstall the Top
Shield
Figure 7. Reinstalling the Top Shield
5. Reinstall the Developer Module (REP 9.5).

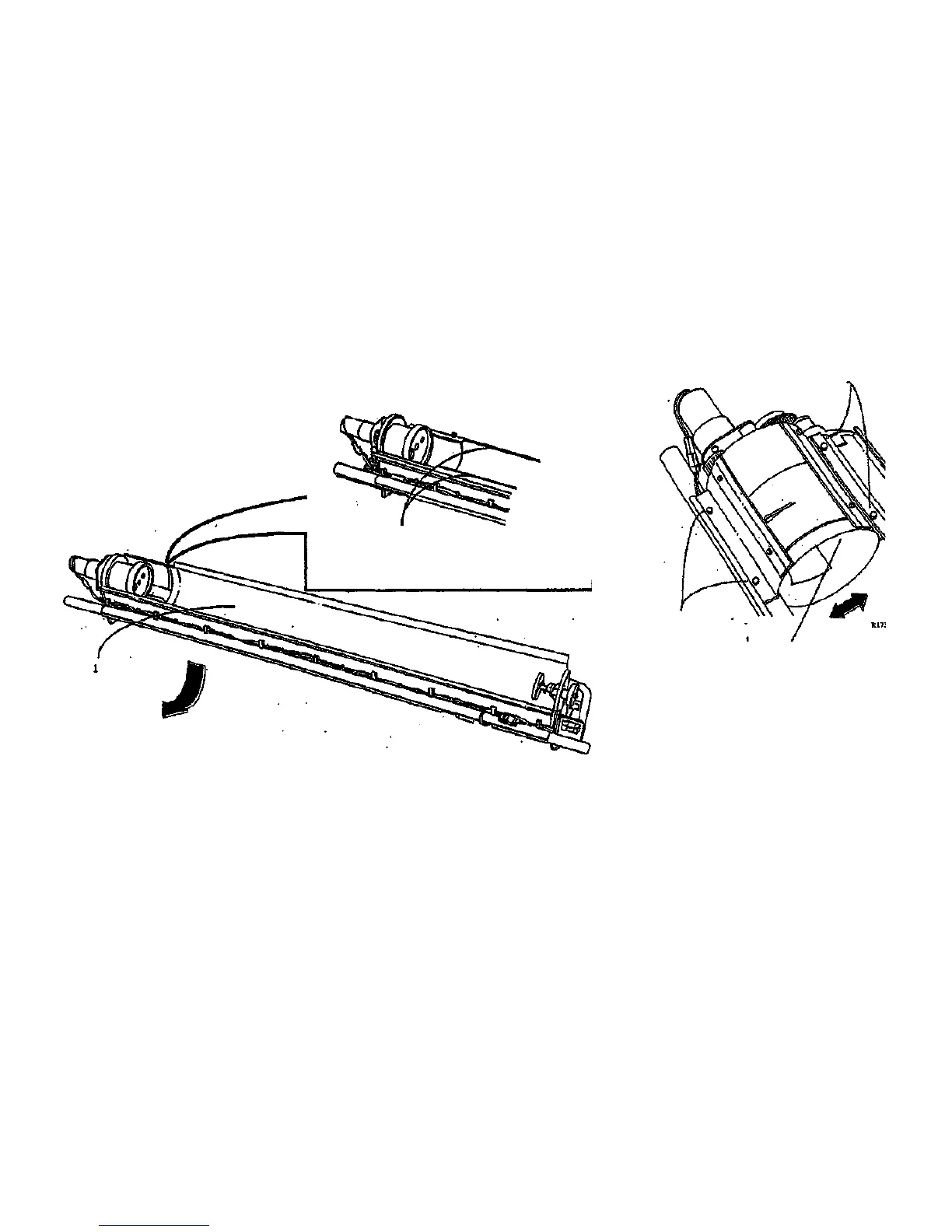

Figure 6. Reinstalling the Sump Shield in the Developer Module
REP 9.7
1/98
4-62
8830
