Replacement
CAUTION
Do not rotate the Auger Gears individually more
than the slight amount required for removal or to
mesh the teeth during reinstallation. If the factory
setting of the augers is changed during the
procedure, perform the adjustment procedure,
Augers (ADJ 9,6).
NOTE: The gears must be reinstalled with the
flanges as shown in order to ensure that all the gears
are secured.
1. (Figure 2): Reinstall the Air Pressure Tubes.
Reinstall the gear and
the Grip Ring

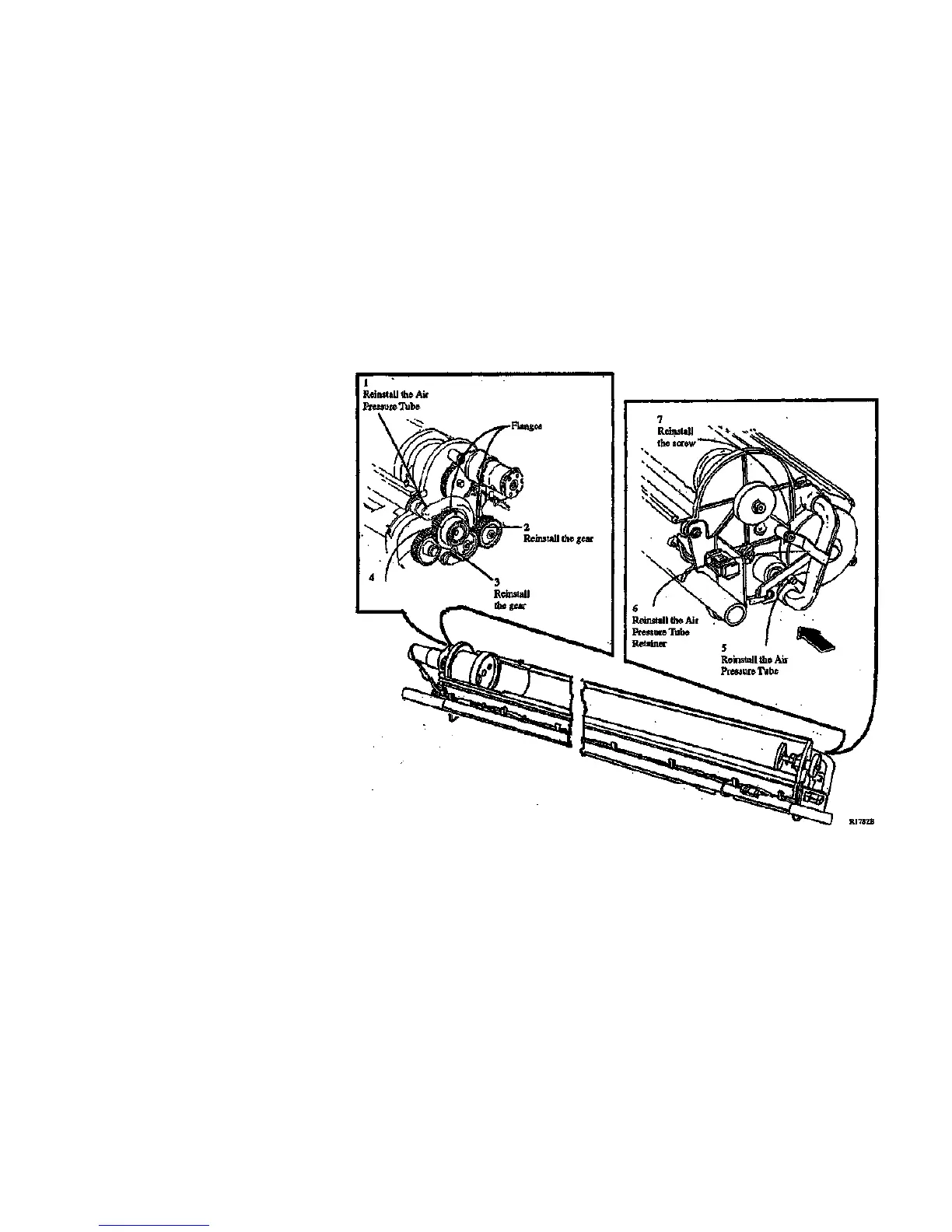

Figure 2. Reinstalling the Air Pressure Tubes
REP 9.18
1/98
4-76
8830
