Xerox 8830 Service Manual

Replacement

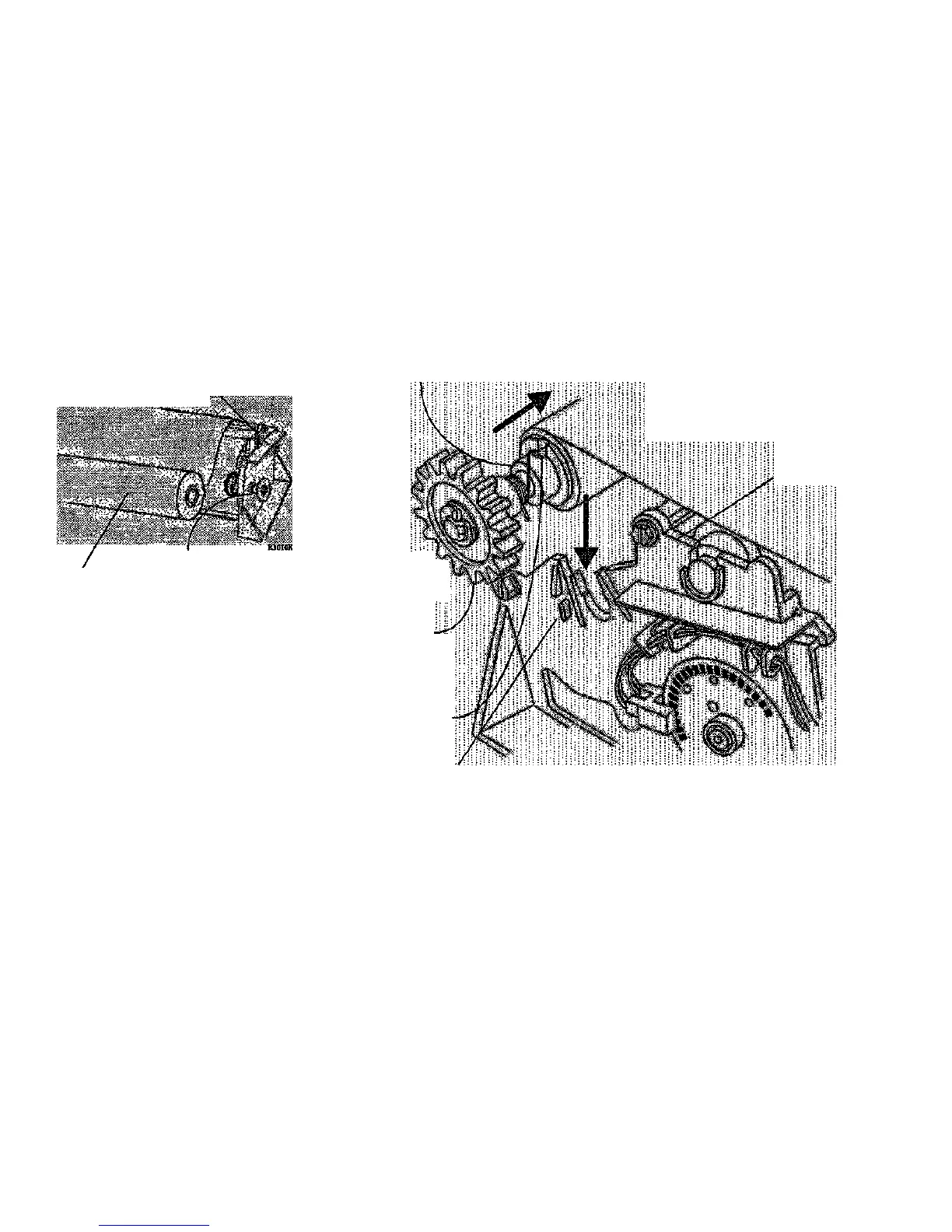

1. (Figure 3): Reinstall the Supply Roll.
l
Mount the opposite end
of (he Supply Roll onto
the LH Side Plate RH Side
Plate.
Supply Roll
Pull the knob and lock on the
the Supply Roll
Figure 3. Reinstalling the Supply Roll
2. (Figure 4): Reinstall the Takeup Roll.
3. After reinstallation or replacement of the Web
Oiler into the assembly, follow the
replacement instructions in Web Oiler
Assembly (REP 10.7).
Push the Stub Shaft/
Gear Assembly into the
Takeup Roll
Push the Stub Shaft/
Gear Assembly onto the
LH Side Plate
Rotate the gear
counterclockwise until
the spring is next to the
stop
Engage the spring with
the stop on (he LH Side
Plate
1
Mount the opposite end
of the Takeup Roll onto
the RH Side Plate
LH Side
Plate
R3011K
Spring Stop
Figure 4, Reinstalling the Takeup Roll
REP 10.9
1/98
4-92 8830
