ADJ 9.5 Toner Cartridge
Home Sensor
Purpose
The purpose is to set the Toner Cartridge Home
Sensor to the correct distance from the magnet on
the Toner Cartridge.
WARNING
Switch off the Main Power Switch. Disconnect
the Power Cord.
Check
1. Remove the Developer Module (REP 9.5).
2. Remove the Cartridge Drive Plate (REP 9.14).
3. (Figure 1): Check that the tip of the Toner
Cartridge Home Sensor is 2.5 ± 0.5 mm from
the plate.
Adjustment
1. Perform the check.
NOTE: The Toner Cartridge Home Sensor is
threaded. The wires must be disconnected and
straightened in order to rotate the sensor for
adjustment.
2. (Figure 2): Adjust the Toner Cartridge Home
Sensor to 2.5 ± 0.5 mm from the plate.
Straighten the wires and
adjust the sensor
Remove the wires from the
clamps (2 places)

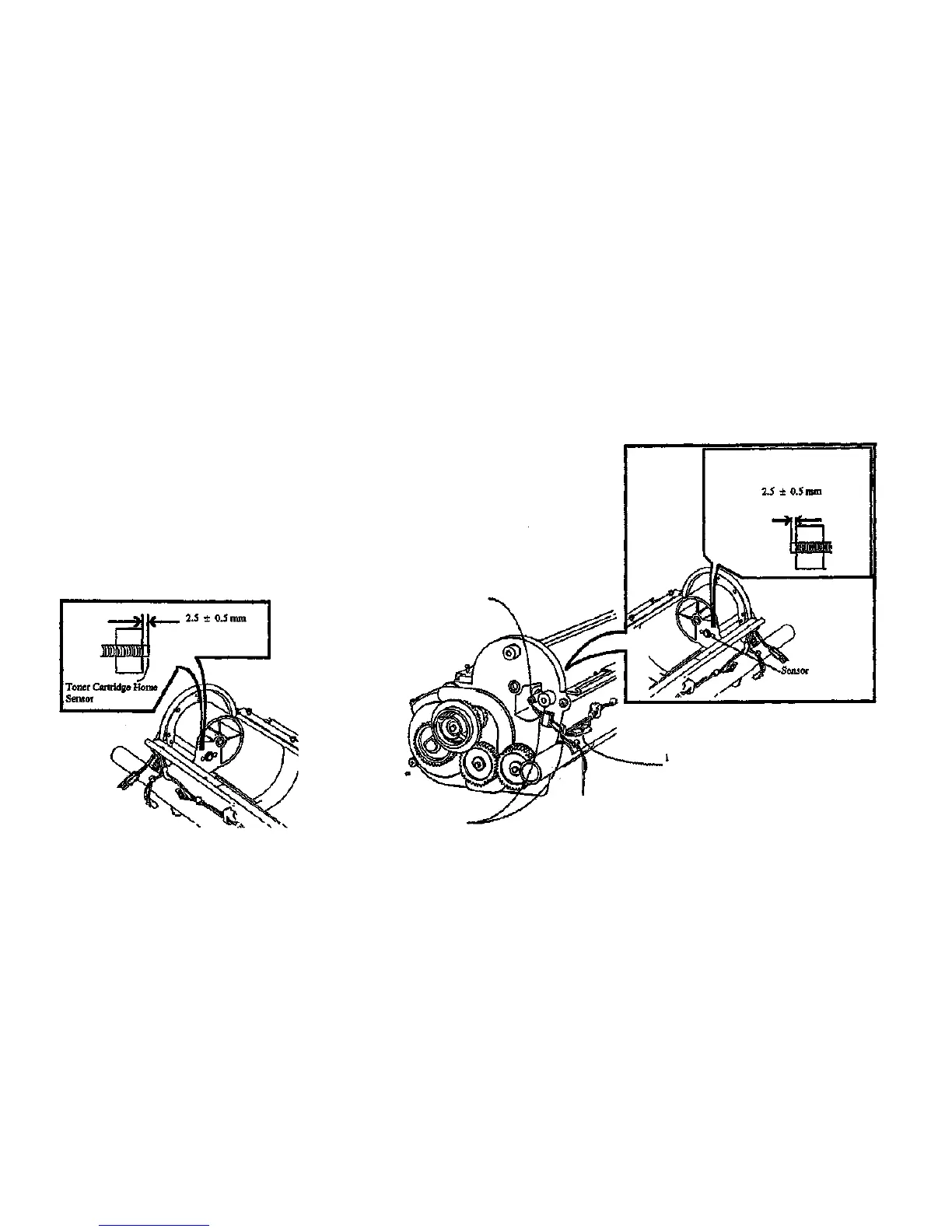

Figure 1. Checking the Position of the
Toner Cartridge Home Sensor
Disconnect
02
Figure 2. Adjusting the Toner Cartridge Home Sensor
ADJ 9.6
1/98
4-106
8830
RI823
2
R1923
