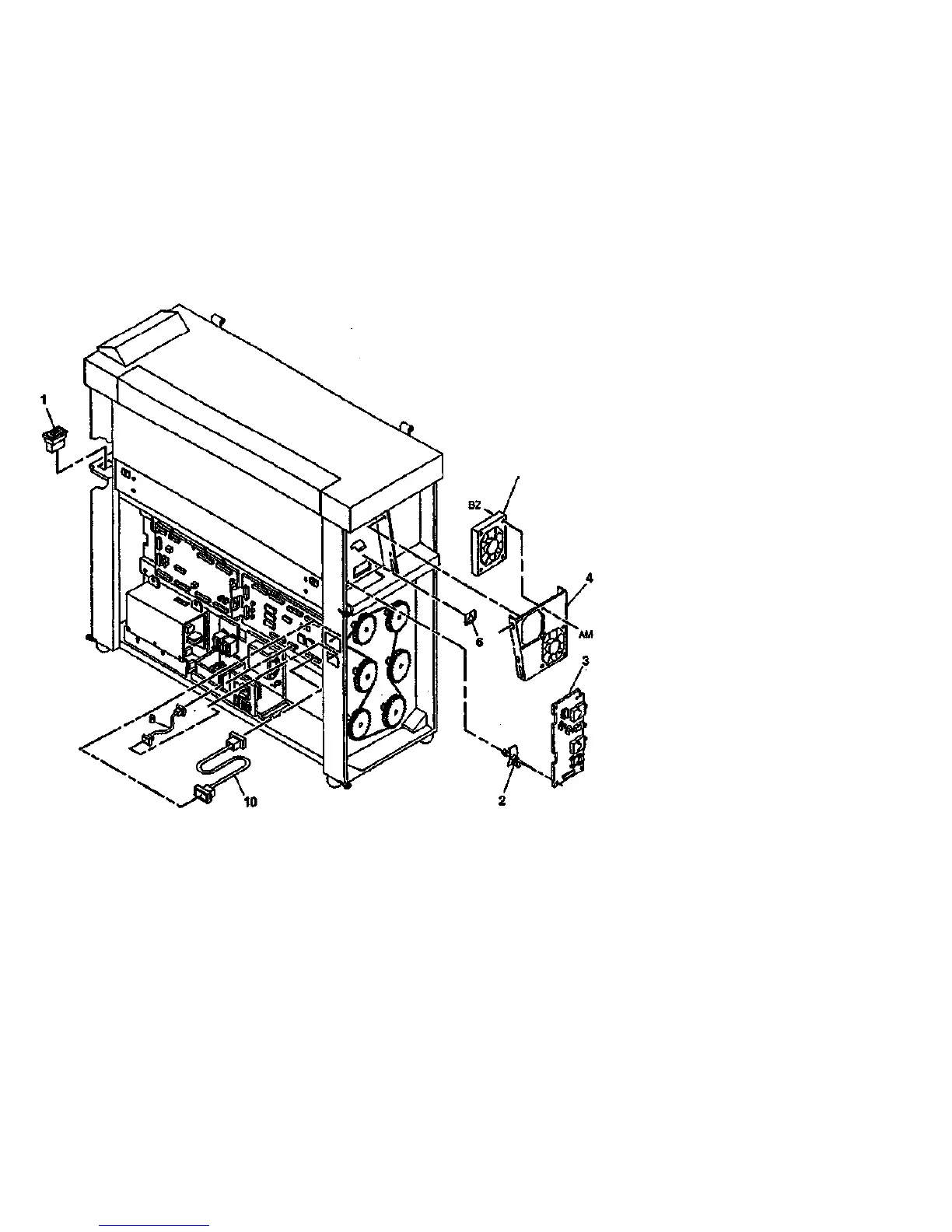

PL 1.3 DC ELECTRICAL COMPONENTS
ITEM
1
2
3
4
5
6
7
8
9
10
PART
111K21
105K13541
54K12300
127E11240
92E36450
600K60900
600K60890
DESCRIPTION
MEDIA COUNTER
STANDOFF (NOT SPARED)
HIGH VOLTAGE
POWER SUPPLY
(REP 3.2)
FAN DUCT
FAN
CHARGE COROTRON LABEL
(RED ARROW)
DIAGNOSTIC KIT
HARNESS (P/O ITEM 7)
LOOPBACK KIT
HARNESS (P/O ITEM 9)
0000003B-RNO
PARTS LIST SECTION
PL 1.3
9/97
5-6
8830
7{8
9 {10
