Xerox 8830 Service Manual

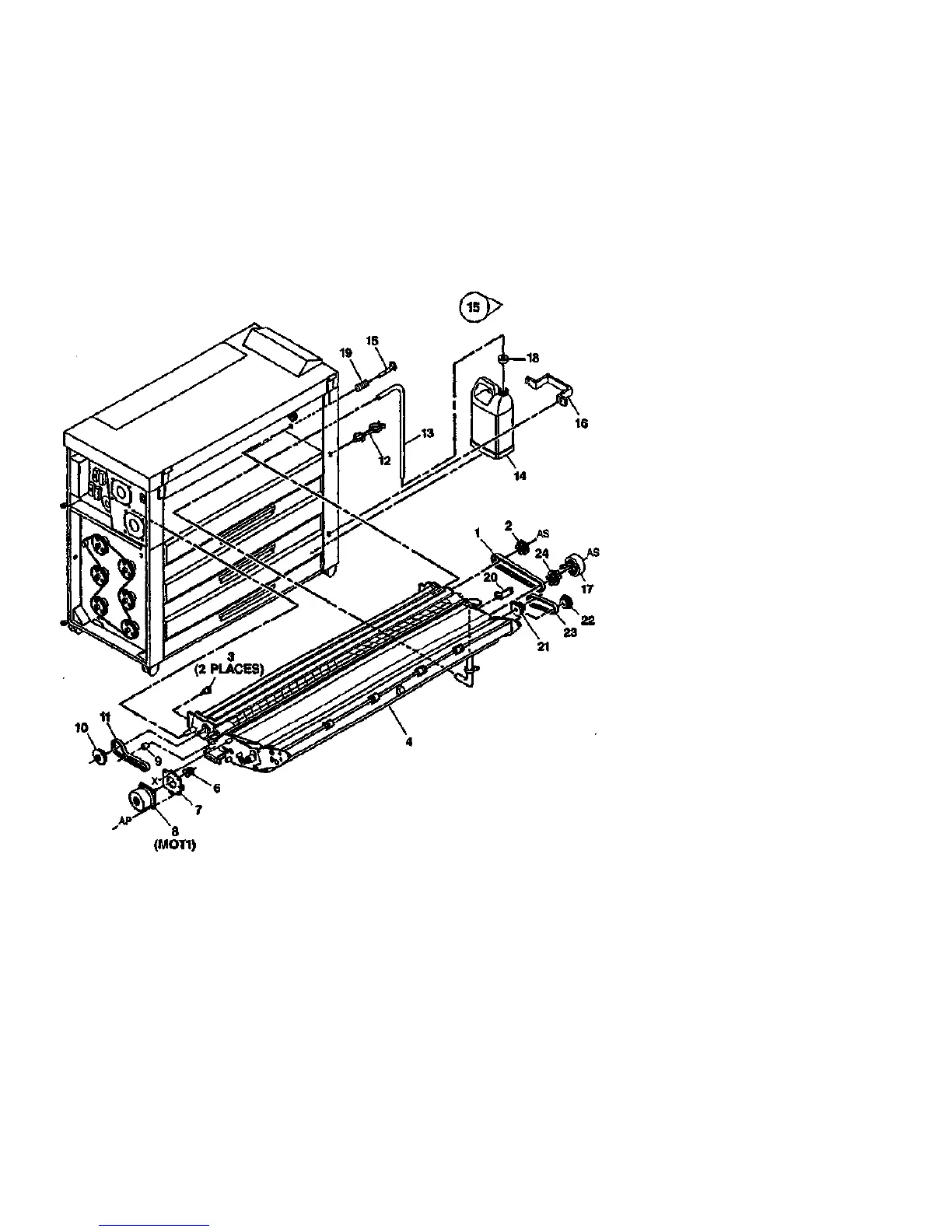

PL 8.1 MEDIA TRANSPORT ASSEMBLY
4(1-3,5,9-11
5(6-8
AN
(EXPLODED ON
PL8.2, ITEM 1
PL8.3, ITEM 1
PL8.4, ITEM 1
PL9.4, ITEM 1
PL10.3, ITEM 1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PART
423W72201
20E13353
26E11970
22K49203
..
20E13603
127K4293
22E11441
20E12353
423W64001
120E2160
52E7910
93E1501
29K1111
121K10612
--
9E32510
17E7221
20E26340
20E26350
•-
20K8080
DESCRIPTION
SHEET DRIVE BELT
SHEET DRIVE PULLEY
SHOULDER SCREW
MEDIA TRANSPORT
ASSEMBLY (W/TAG 15)
(REP 8.1. ADJ 8.1)
TRANSPORT DRIVE MOTOR
ASSEMBLY (NOT SPARED)
DRIVE MOTOR PULLEY
MOTOR MOUNTING
PLATE (P/O ITEM 5)
TRANSPORT DRIVE
MOTOR (MOT1)
(REP 8.10)
IDLER ROLLER
REGISTRATION DRIVE
PULLEY
REGISTRATION
DRIVE BELT
(REP 8.13)
TWIST CLAMP
MOISTURE COLLECTION
TUBE
MOISTURE COLLECTION
BOTTLE
PIN
BRACKET (NOT SPARED)
CLUTCH (REP 8.4)
BOTTLE CAP (NOT SPARED)
COMPRESSION SPRING
CLUTCH BRAKE
GEAR PULLEY
EXIT DRIVE PULLEY
BELT (NOT SPARED)
CLUTCH PULLEY
0000015B RNO
PARTS LIST SECTION
PL 8.1
9/97
5-16
8830
