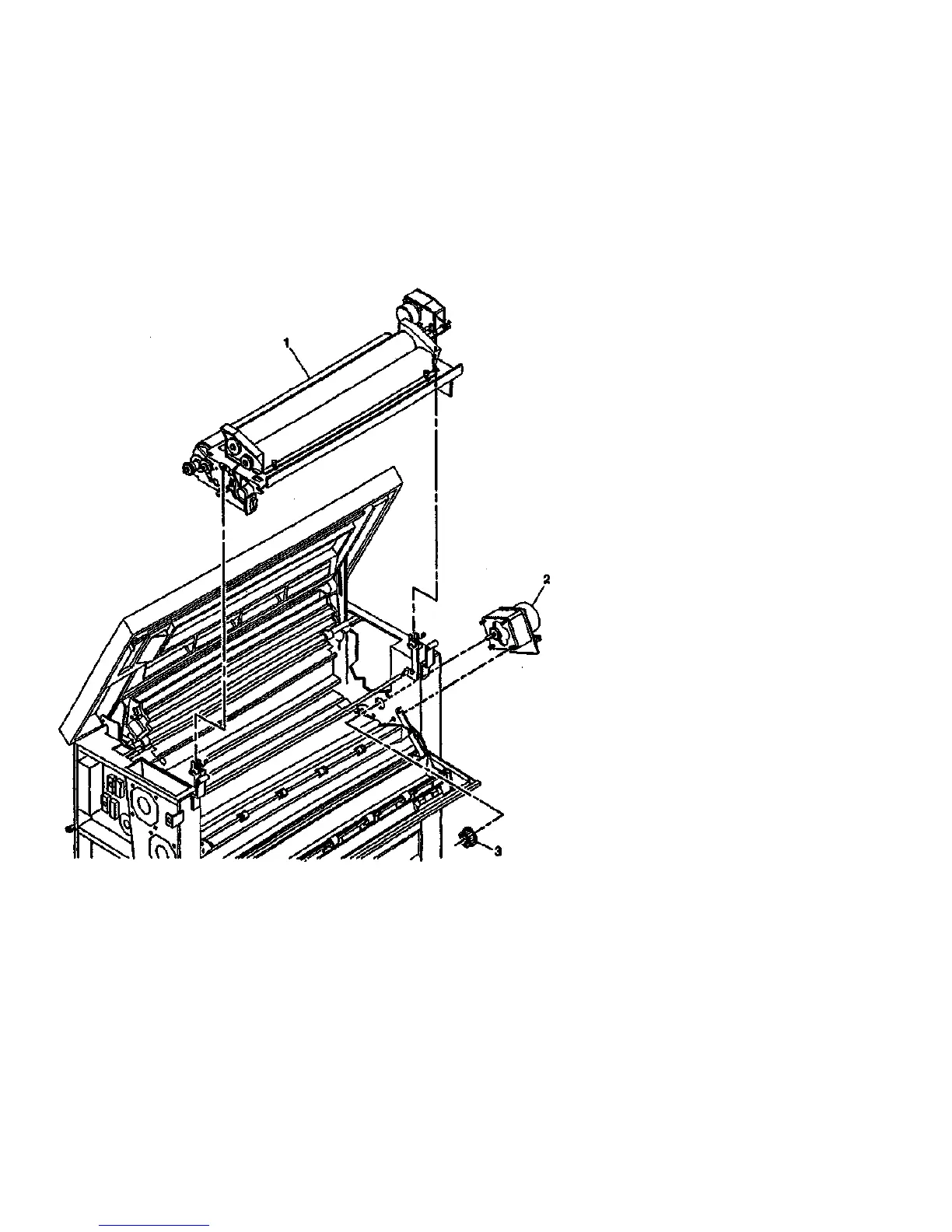

PL 10.1 XEROGRAPHIC MODULE ASSEMBLY
ITEM PART
1 126K5992
126K7152
2 127E10331
3 7E44391
DESCRIPTION
XEROGRAPHIC MODULE
ASSEMBLY (60HZ)
(REP 9.1)
XEROGRAPHIC MODULE
ASSEMBLY (50HZ)
(REP 9.1)
FUSER DRIVE MOTOR
DRIVE PULLEY (28T)
0600028A-RNO
PARTS LIST SECTION
PL 10.1
9/97
5-32
8630
