Xerox 8830 Service Manual

Chain 1 Standby Power
1/98
7-8
8830
MAIN POWER DIAGNOSTIC CODES
[0102] LINE VOLTAGE: DISPLAYS THE MAIN
POWER VOLTAGE.
[0103] LINE FREQUENCY: DISPLAYS THE
MAIN POWER FREQUENCY.

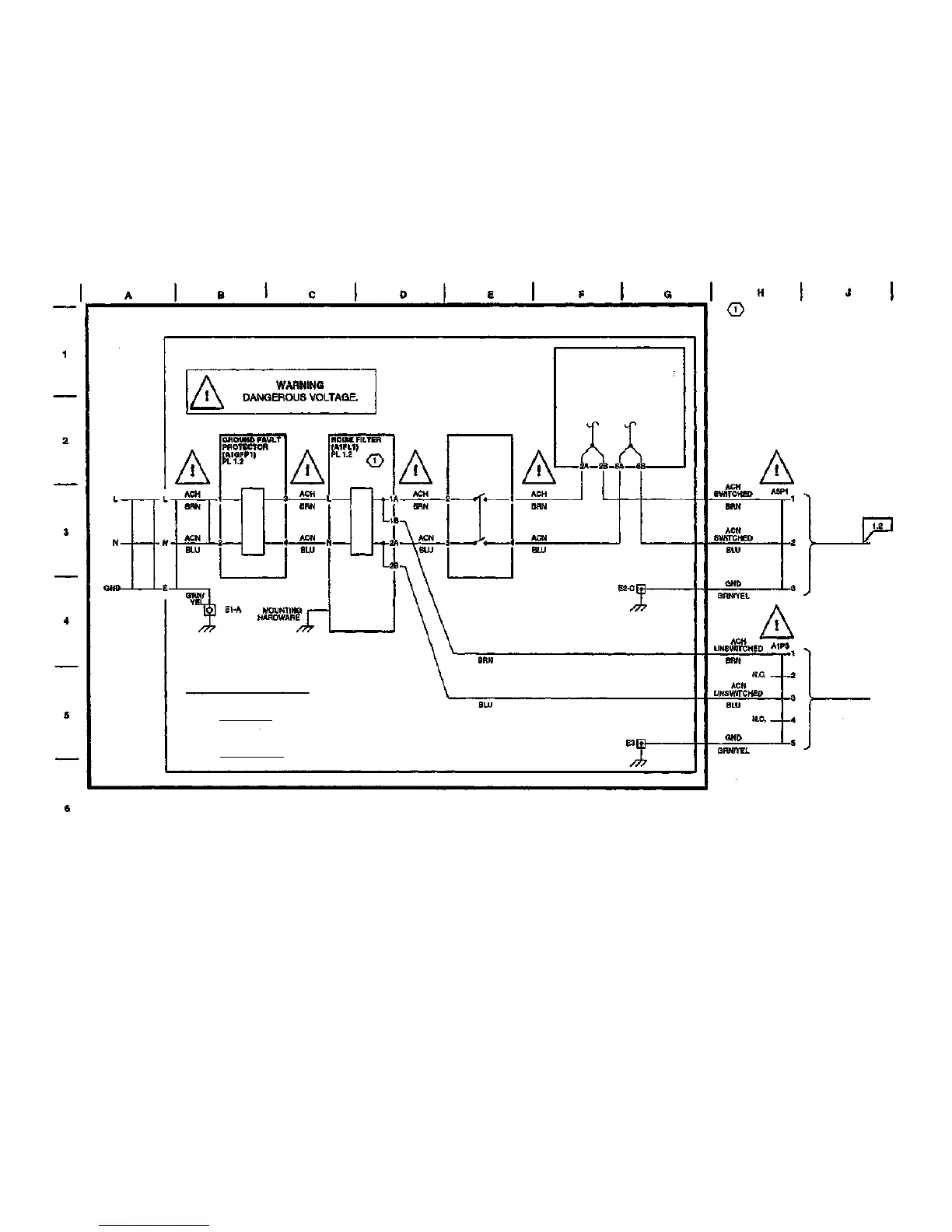

1.1A MAIN POWER ON (WITH "DELTA" NOISE FILTER) ($0 AND 60 HZ) (1 OF 2)
POWER
CORD
PL 1.2
AC MODULE (A1)
MAIN POWER
SWITCH (A1S1)
PL 1.2
ACH
SWITCHED
ACN
SWITCHED
REFER TO BSD 10.1 FOR THE
CIRCUIT OF THE FUSER
POWER RELAY (A1K1).
FUSER POWER RELAY (A1K1)
PL 1.2
THE "DELTA" NOISE FILTER IS NOT
INTERCHANGEABLE WITH THE
"CORCOM" NOISE FILTER. THE NOISE
FILTERS REQUIRE DIFFERENT WIRE
HARNESSES. REFER TO BSD 1.1B FOR
THE CIRCUIT OF THE "CORCOM" NOISE
FILTER.
AC POWER
SWITCHED
TO LVPS
AC POWER
UNSWITCHED
TO CONTROLLER
PWB (ESS)
REFER TO
SECTION 6
