Xerox 8830 Service Manual

Chain 1 Standby Power
1/98
7-10
8830

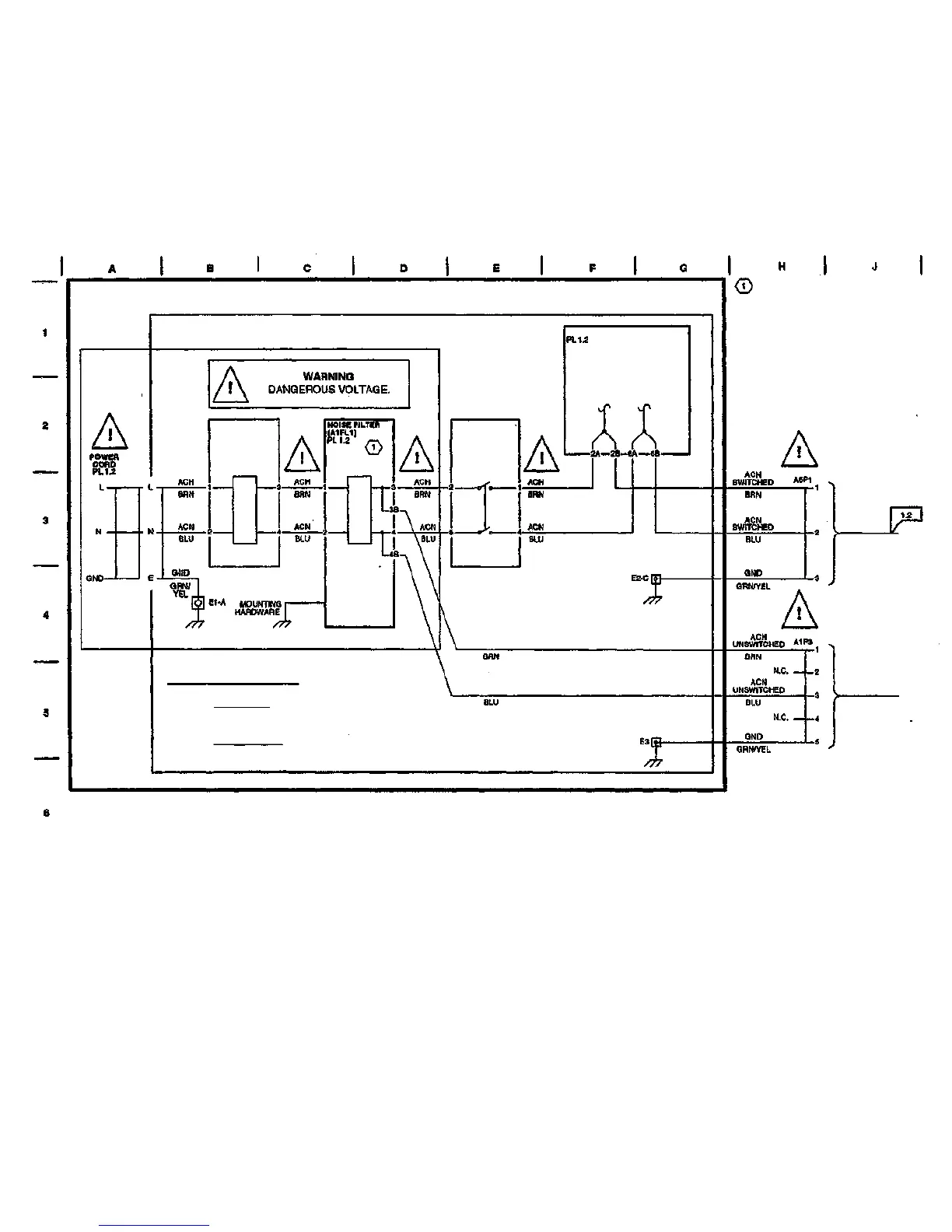

1.1 B MAIN POWER ON (WITH "CORCOM" NOISE FILTER) (50 AND 60 HZ) (1 OF 2)
110/120 VAc
60 HZ CIRCUIT
(REFER TO
ZN K1 FOR
60 HZ CIRCUIT)
MAIN POWER DIAGNOSTIC CODES
[0102] LINE VOLTAGE: DISPLAYS THE MAIN
POWER VOLTAGE.
[0103] LINE FREQUENCY: DISPLAYS THE
MAIN POWER FREQUENCY.
GROUND FAULT
PROTECTOR
(A1GFP1)
PL 1,2
MAIN POWER
SWITCH (A1S1)
PL 1.2
FUSER POWER RELAY (A1K1)
REFER TO BSD 10.1 FOR THE
CIRCUIT OF THE FUSER
POWER RELAY (A1K1).
ACH
SWITCHED
ACN
SWITCHED
THE "DELTA" NOISE FILTER IS NOT
INTERCHANGEABLE WITH THE
"CORCOM" NOISE FILTER. THE NOISE
FILTERS REQUIRE DIFFERENT WIRE
HARNESSES. REFER TO BSD 1.1 A FOR
THE CIRCUIT OF THE "DELTA" NOISE
FILTER.
AC POWER
SWITCHED
TO LVPS
AC POWER
UNSWITCHED
TO CONTROLLER
PWB (ESS)
REFER TO
SEPARATE
SERVICE MANUAL
AC MODULE (A1)
