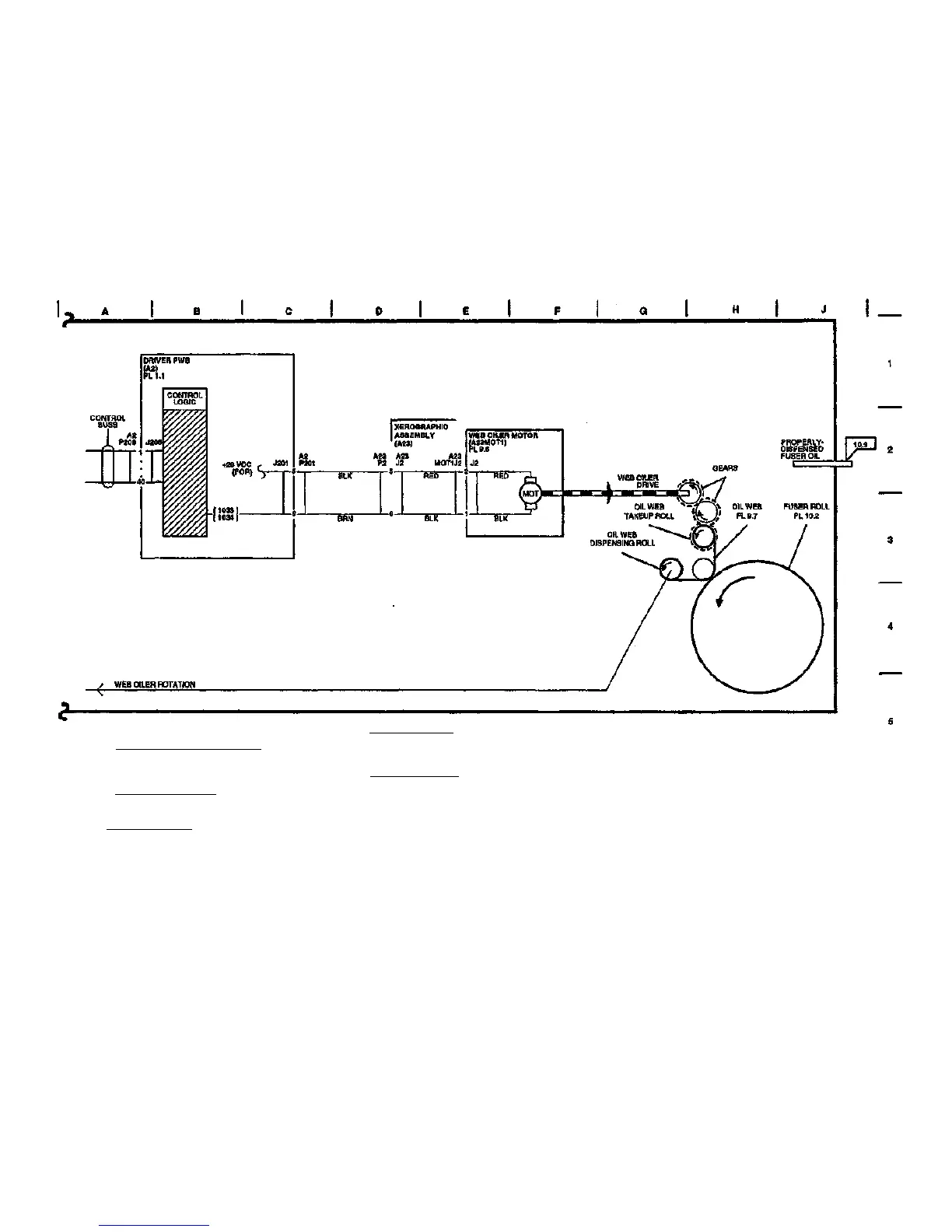

10.2 FUSER OIL DISPENSING (2 OF 2)
FUSER OIL DISPENSING DIAGNOSTIC CODES
[1030] RESET FUSER OIL DISPENSING TO ZERO THIS
DIAGNOSTIC SETS THE WEB COUNTER TO ZERO AND
SHOULD ONLY BE USED AS PART OF THE PROCEDURE
TO INSTALL A NEW OIL WEB.
[1031] SPECIFY OIL WEB POSITION: THIS DIAGNOSTIC RESETS
THE WEB COUNTER AFTER NVM HAS BEEN CORRUPTED
OR WHEN A PARTIALLY USED WEB IS INSTALLED.
[1032 ] ADJUST OIL WEB RATE: ADJUSTABLE FROM 50% TO 200%
OF NOMINAL VALUE.
[1033 ] ADVANCE THE OIL WEB: THIS DIAGNOSTIC ADVANCES
THE OIL WEB UNTIL [EXIT] IS PRESSED. THIS IS USEFUL
FOR TAKING UP ANY SLACK IN A WEB AND FOR
VERIFYING THE OPERATION OF THE WEB CIRCUIT.
[1034] REMAINING OIL WEB LIFE: DISPLAYS AN ESTIMATE OF
THE NUMBER OF FEET (OR METERS) OF 38-INCH WIDE
PRINTS THAT CAN BE MADE WITH THE CURRENT WEB.
8830
1/98
7-81
Chain 10 Fusing
