Xerox 8830 Service Manual

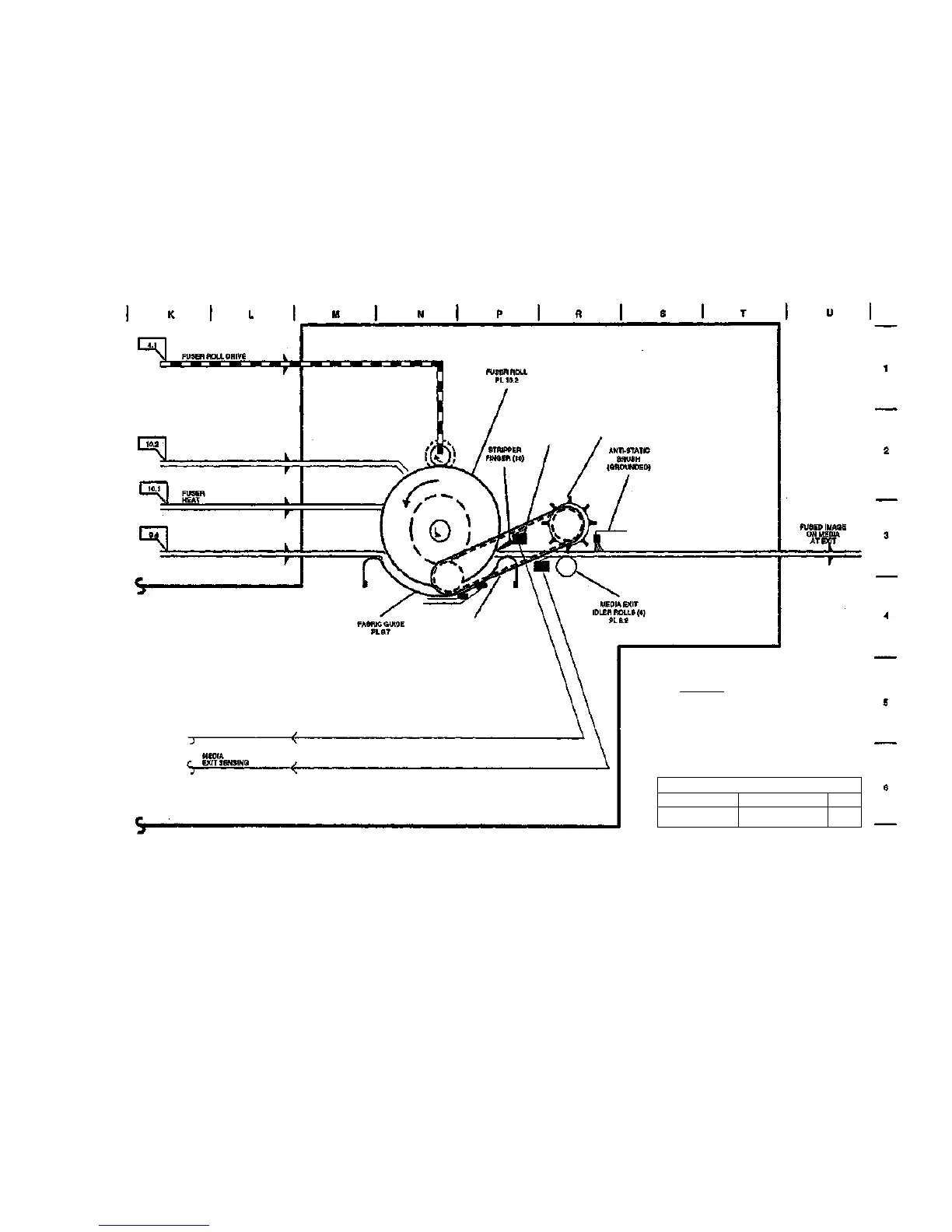

10.3 FUSING ANO MEDIA EXIT (2 OF 3)
MEDIA EXIT
STRIPPER DRIVE ROLLS (4)
FINGER PL 6.2
JAM SWITCH (S1)
PROPERLY-DISPENSED
FUSER OIL
STRIPPED
UNFUSED
PRINT
MEDIA EXIT
DRIVE BELT
PL 8.1
FUSING AND MEDIA EXIT DIAGNOSTIC CODES
(08071 EXIT SENSOR (INPUT):
STRIPPER FINGER
( JAM SWITCH SENSING
INPUT POWER BLOCK
VOLTAGE
+5 VDC
DC COM
TEST POINT
LVPS (A5) J3-14
LVPS (A5) J3-11
GF
1.2
1.2
8830
1/98
7-83 Chain 10 Fusing
