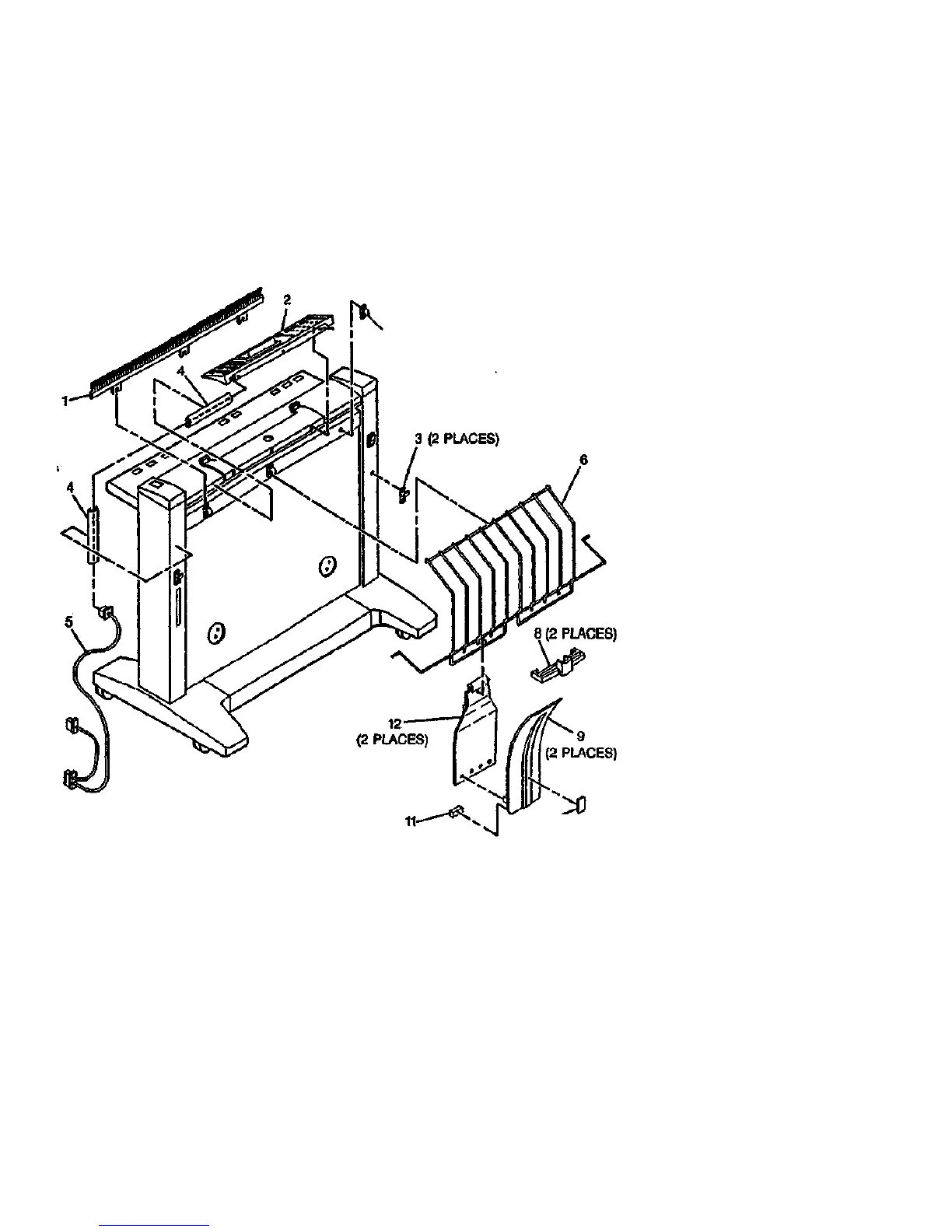

PL 1.2 DDS COMPONENTS (PART 2 OF 2)

7{8-12

3 (3 PLACES)

(2 PLACES)

10'

(2 PLACES)

ITEM

PART

125K2600

101K32281

•-

119E430

162K38901

48E55910

50K19682

17E6010

50E10191

121E1402

DESCRIPTION

STATIC ELIMINATOR

(REP 4.1.4)

CONTROL PANEL

(REP 4.1.6)

BRACKET (NOT SPARED)

CABLE GUIDE

CONTROL PANEL CABLE

(REP 4.1.5)

WIRE FORM (REP 4.1.2)

DOCUMENT CATCH DEVICE

ASSEMBLY

DOCUMENT STOP

FRONT STACKER

STACKER STOP

(P/O ITEM 7)

MAGNET

REAR STACKER

(P/O ITEM 7)

0000002A-DOS

8830 DDS

9/88

5-5

PARTS LIST SECTION

1.2
