Xerox 8830 Service Manual

7. (Figure 4): Slide each Drive Roll to the left to expose the Drive
Pulley:
8. For each roll:
a. Loosen the Set screw on the Drive Pulley.
b. Remove and keep:
1) Drive Pulley
2) Bushing
3) Bearing
4) Flat Washer
5) Wave Washer
Wave Washer
Flat Washer
Bearing
Bushing
Drive
Pulley
Drive Roll

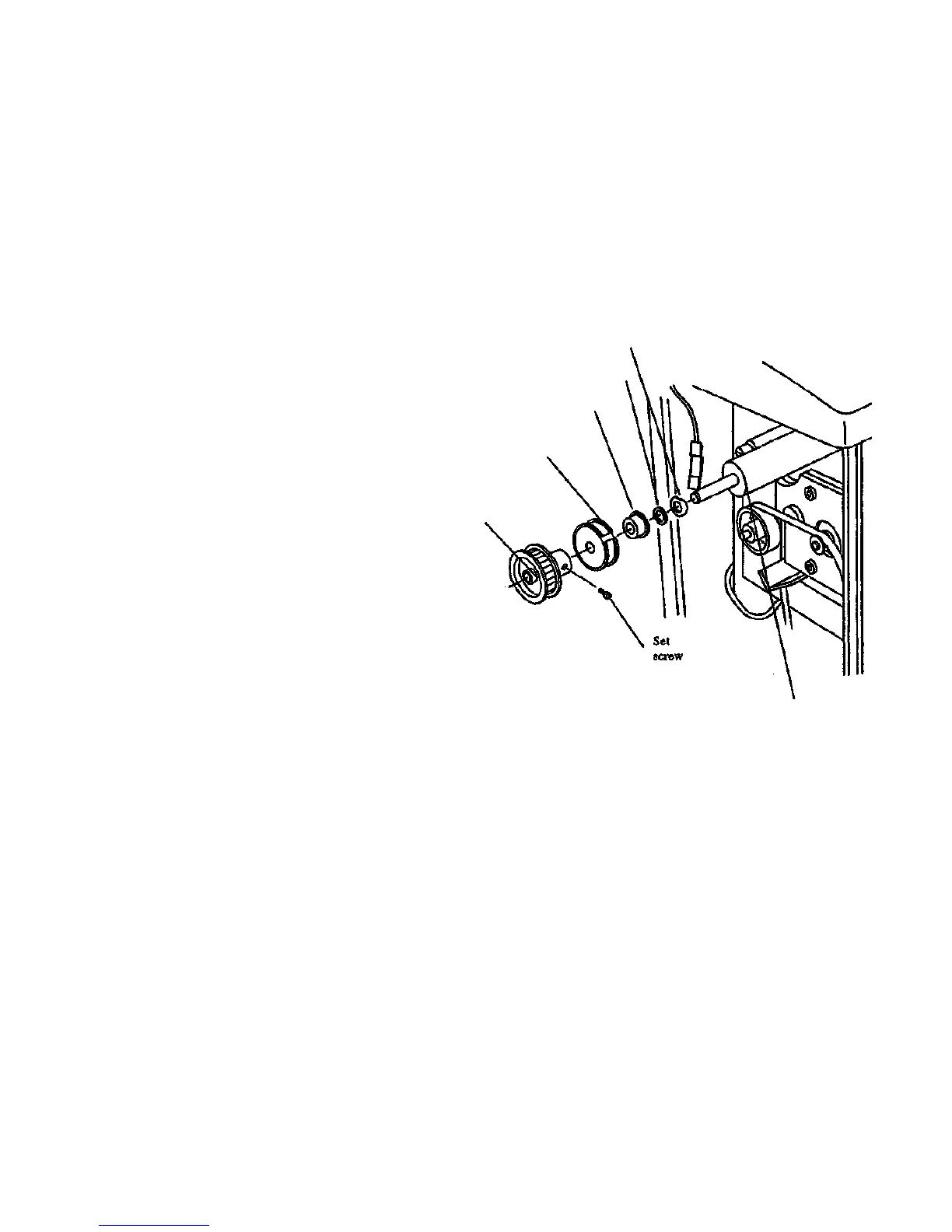

Figure 4. The Drive Roll and the Installed Parts
REP 4.1.17
4/97
4-30 7356 SCANNER
