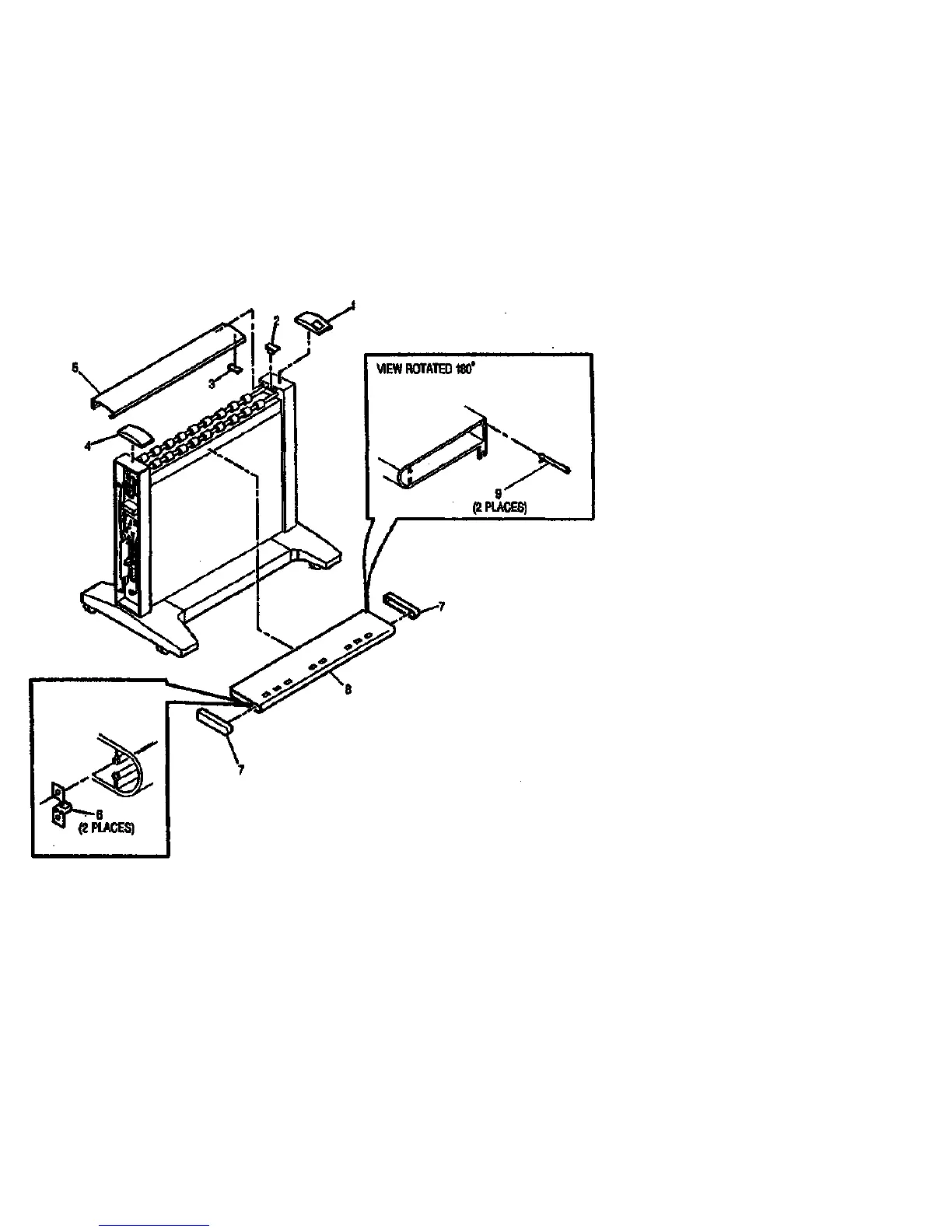

PL 14.1 FEED TRAY AND TOP COVER
ITEM
1
2
3
4
S
-
6
7
8
-
9
PART
21N61
2N1382
91N427
21N62
2N1484
600K64670
9N833
50N191
50N221
600K64680
29N151
DESCRIPTION
RIGHT TOP CAP
(REP 4.1.9)
TOP COVER MAGNET
STRIKER PLATE
LEFT TOP CAP
(REP 4.1.8)
TOP COVER (W/O TAG 5)
TOP COVER KIT (TAG 5)
SPRING CATCH CUP
FEED SHELF END CAP
FEED SHELF (W/O TAG 6)
FEED SHELF KIT (TAG 6)
LOCKPIN
0000007A-SCN
PARTS LIST SECTION
PL 14.1
12/97
