February 2013
4-350
ColorQube® 9303 Family
REP 91.20
Repairs/Adjustments
3. Disconnect the upper and lower umbilicals from the ink reservoir, Figure 2.

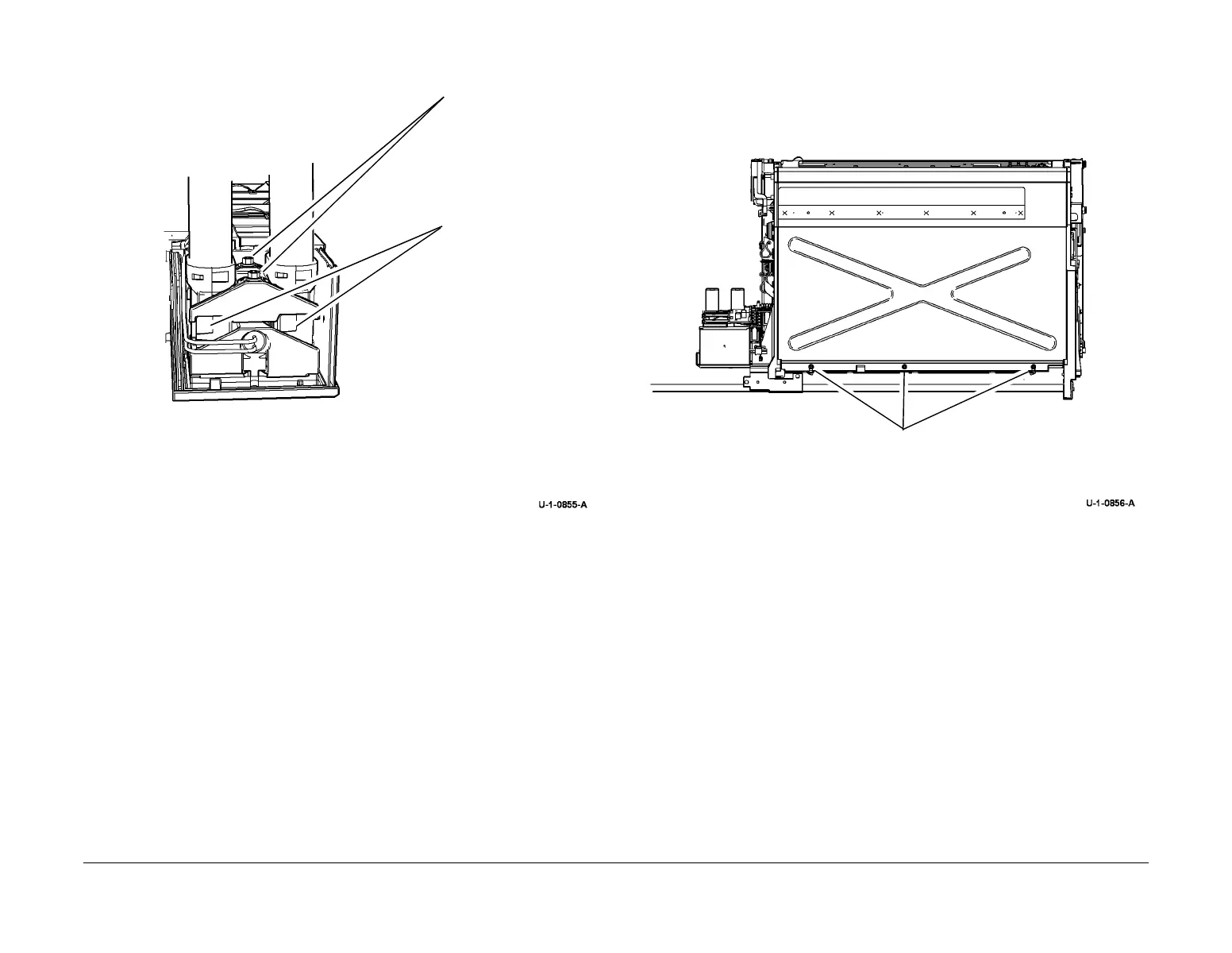

Figure 2 Umbilical removal
4. Remove the marking unit enclosure, Figure 3.
Figure 3 Marking unit enclosure removal
1
Remove 2 screws then
the umbilical clamp.
2
Disconnect the
umbilicals from the
ink reservoir.
3
Remove the gasket from
the ink reservoir or from
the umbilical.
1
Loosen 2 outer screws then remove
the middle screw.
2
Remove the enclosure.
To Next Page
