Xerox ColorQube 9301

February 2013
4-351
ColorQube® 9303 Family
REP 91.20
Repairs/Adjustments
5. Disconnect PJ201 from the marking unit heater PWB and PJ801 from the marking unit
driver PWB, Figure 4.
NOTE: A new marking unit heater PWB to solenoid patch PWB harness is supplied with a
new ink reservoir.

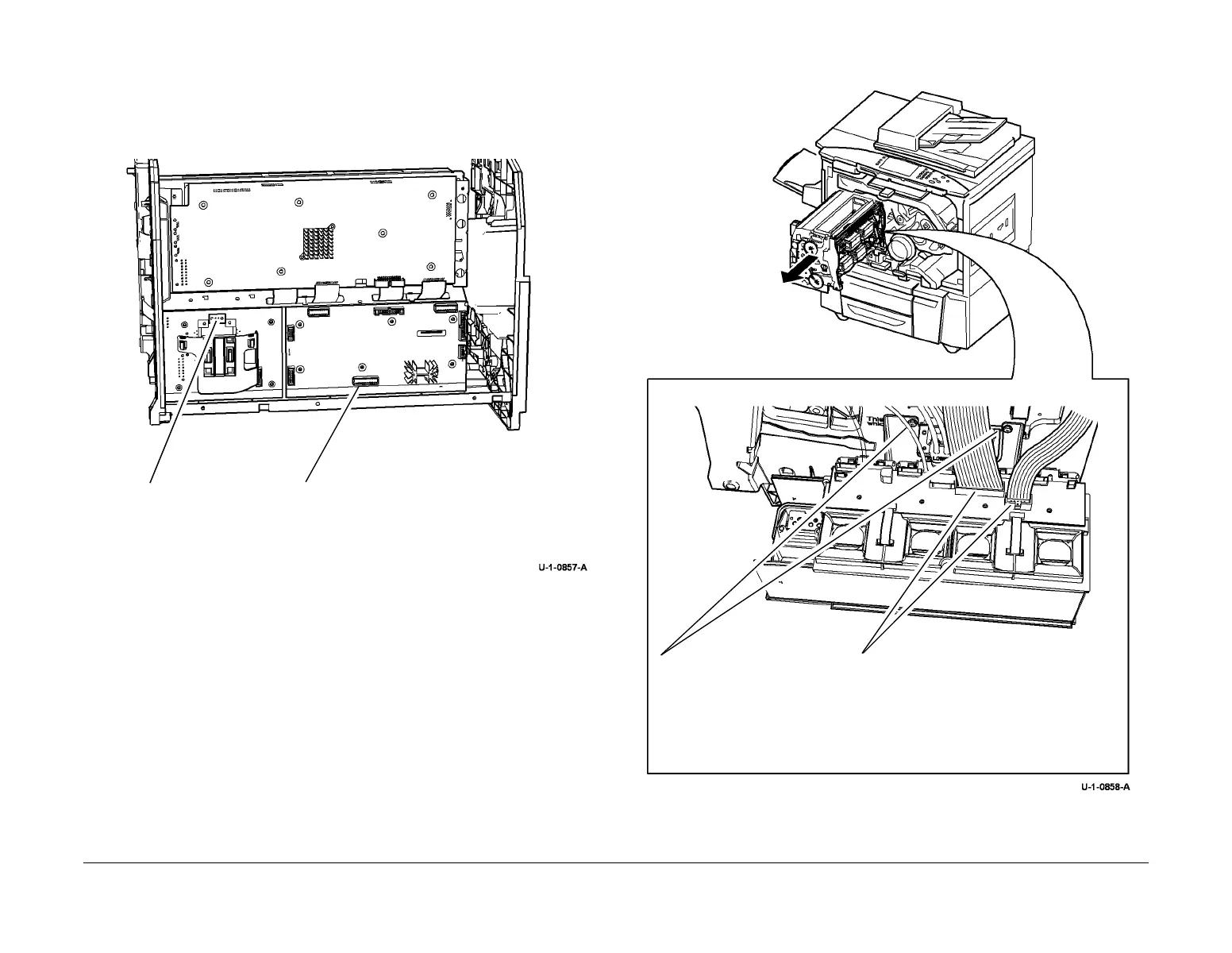

Figure 4 Disconnect harness
6. Remove the ink reservoir, Figure 5.
Figure 5 Ink reservoir removal
1
Disconnect PJ201.
2
Disconnect PJ801 (see NOTE).
2
Disconnect PJ760 and
PJ630 from the sole-
noid patch PWB.
1
Disconnect upper and
lower purge hoses.
3
Remove 2 screws, then lift the ink
reservoir to remove it.
