February 2013
7-10
ColorQube® 9303 Family
PJ Locations
Wiring Data

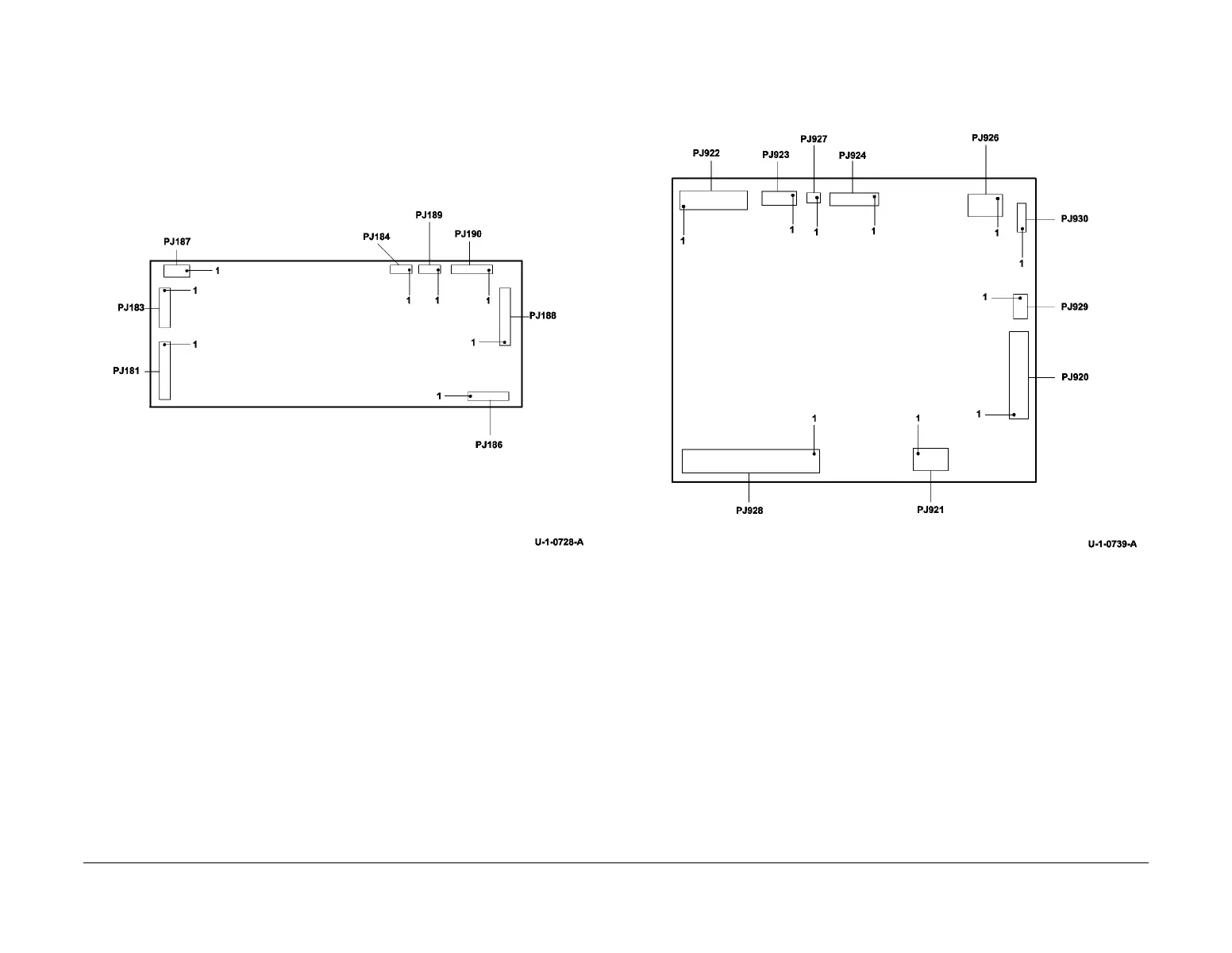

DADH PWB
Location: PL 5.10 Item 5
Figure 4 DADH PWB
Scanner PWB
Location: PL 62.16 Item 8
Figure 5 Scanner PWB
