February 2013
7-13
ColorQube® 9303 Family
PJ Locations
Wiring Data
Media Path Driver PWB
Location: PL 1.15 Item 21

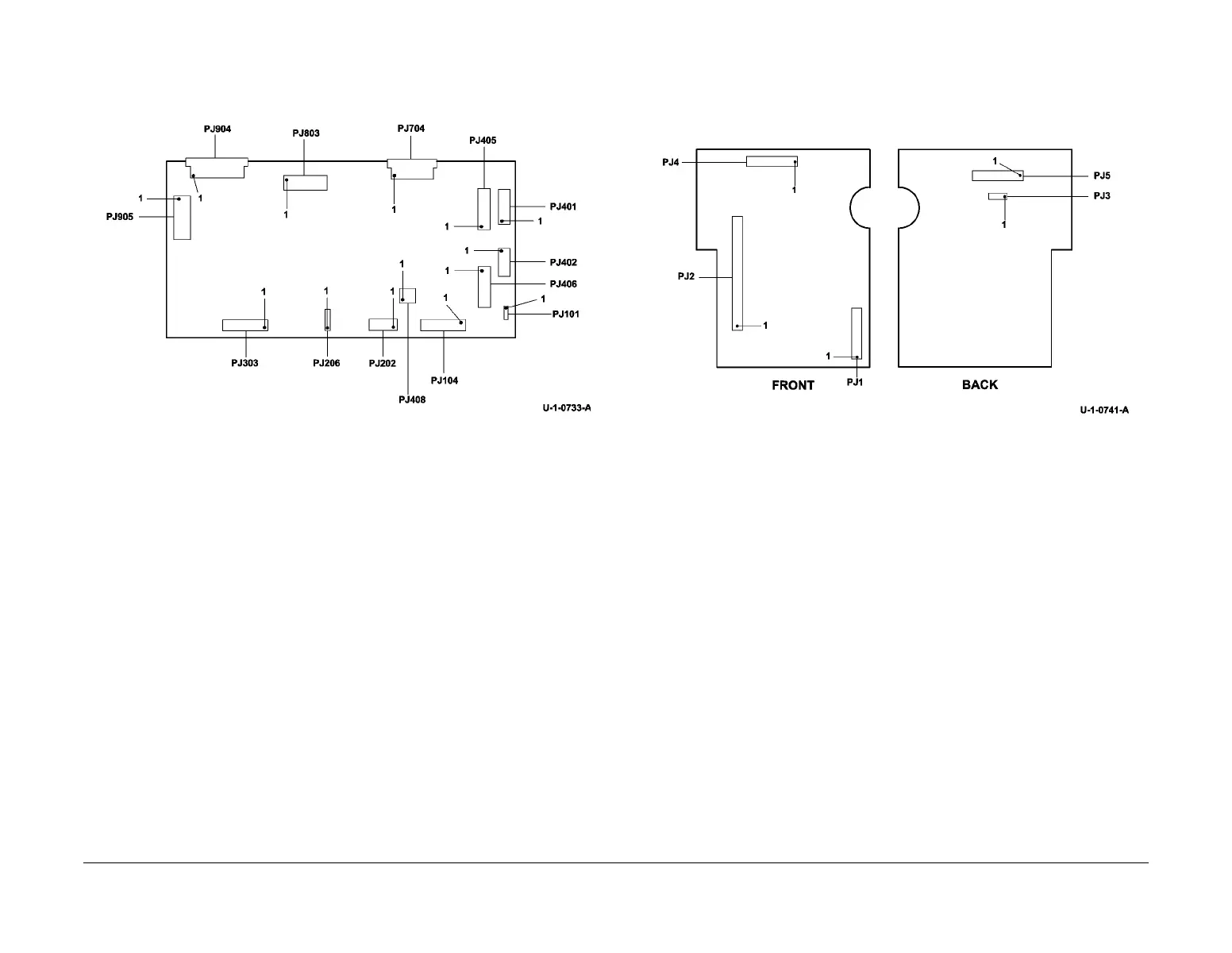

Figure 10 Media path driver PWB
Registration / Preheat Interface PWB
Location: PL 88.10 Item 10
Figure 11 Registration / preheat interface PWB
