February 2013
7-14
ColorQube® 9303 Family

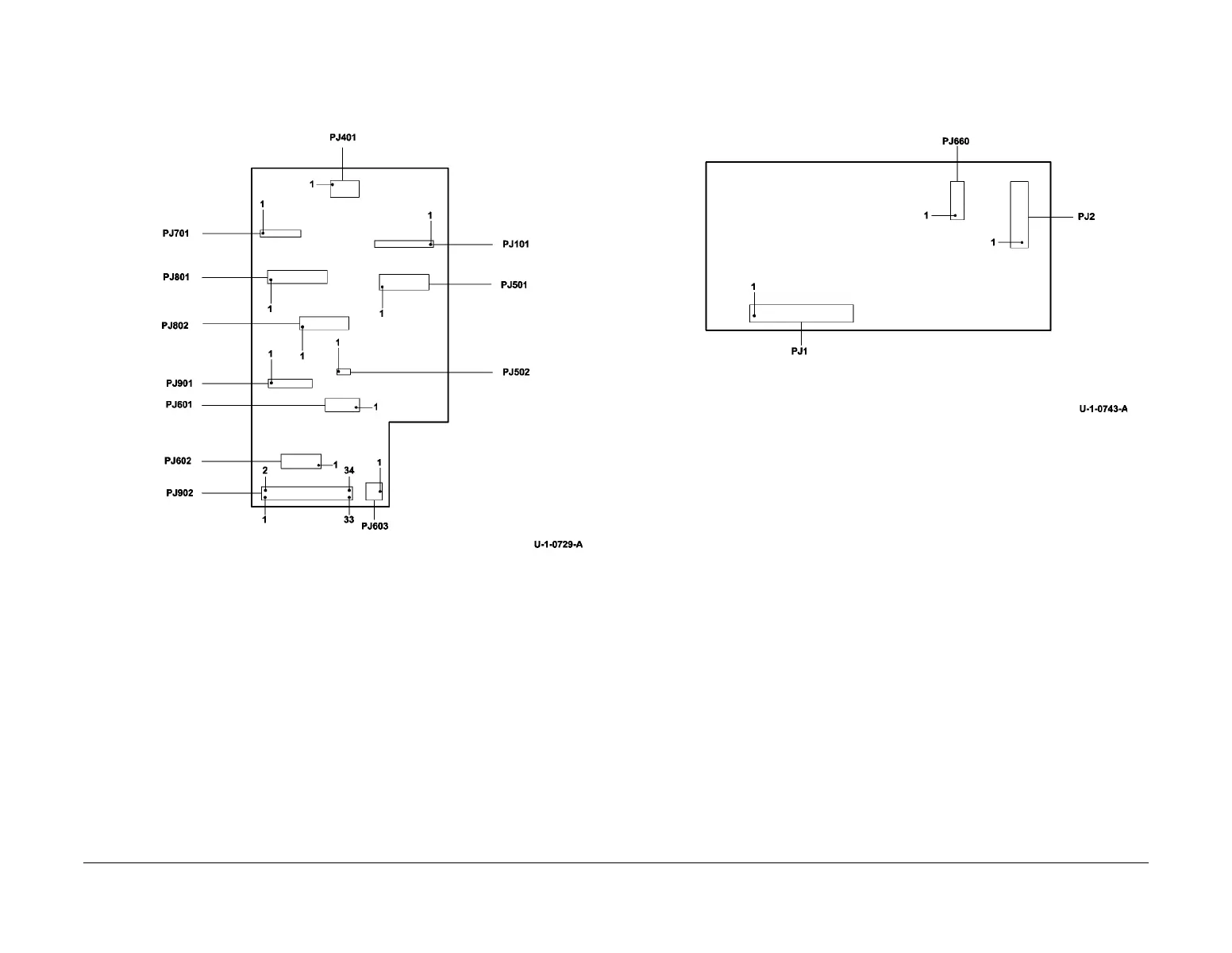

PJ Locations
Wiring Data
Drum Driver PWB
Location: PL 1.15 Item 4
Figure 12 Drum driver PWB
IOD Pre Amplifier PWB
Location: PL 94.15
Figure 13 IOD pre amplifier PWB
