February 2013
7-15
ColorQube® 9303 Family

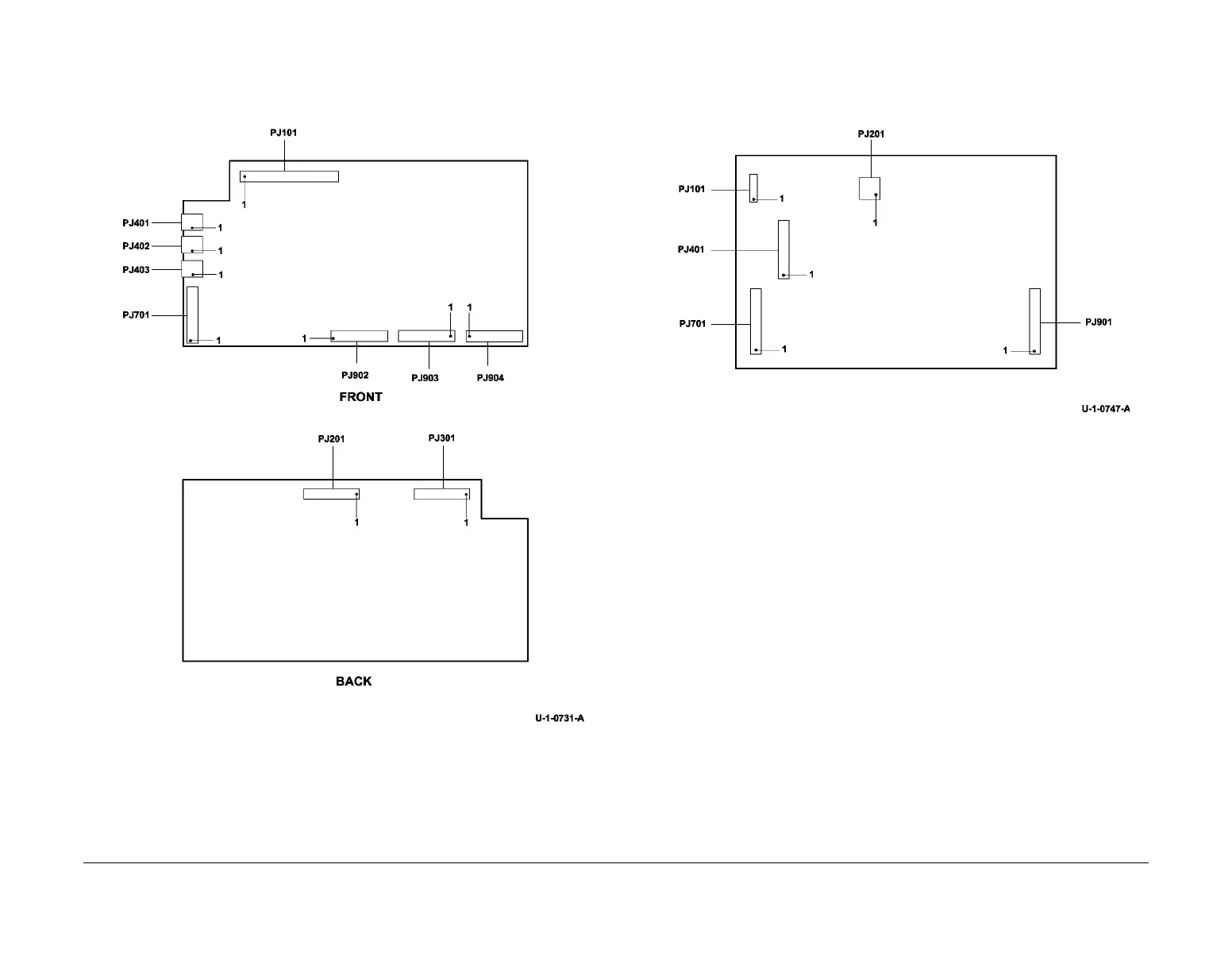

PJ Locations
Wiring Data
IME Controller PWB
Location: PL 92.10 Item 1
Figure 14 IME controller PWB
Marking Unit Heater PWB
Location: PL 92.10 Item 5
Figure 15 Marking unit heater PWB
