February 2013
7-19
ColorQube® 9303 Family
PJ Locations
Wiring Data
In-Line Connector PJ530
Location: PL 75.68 Item 4.

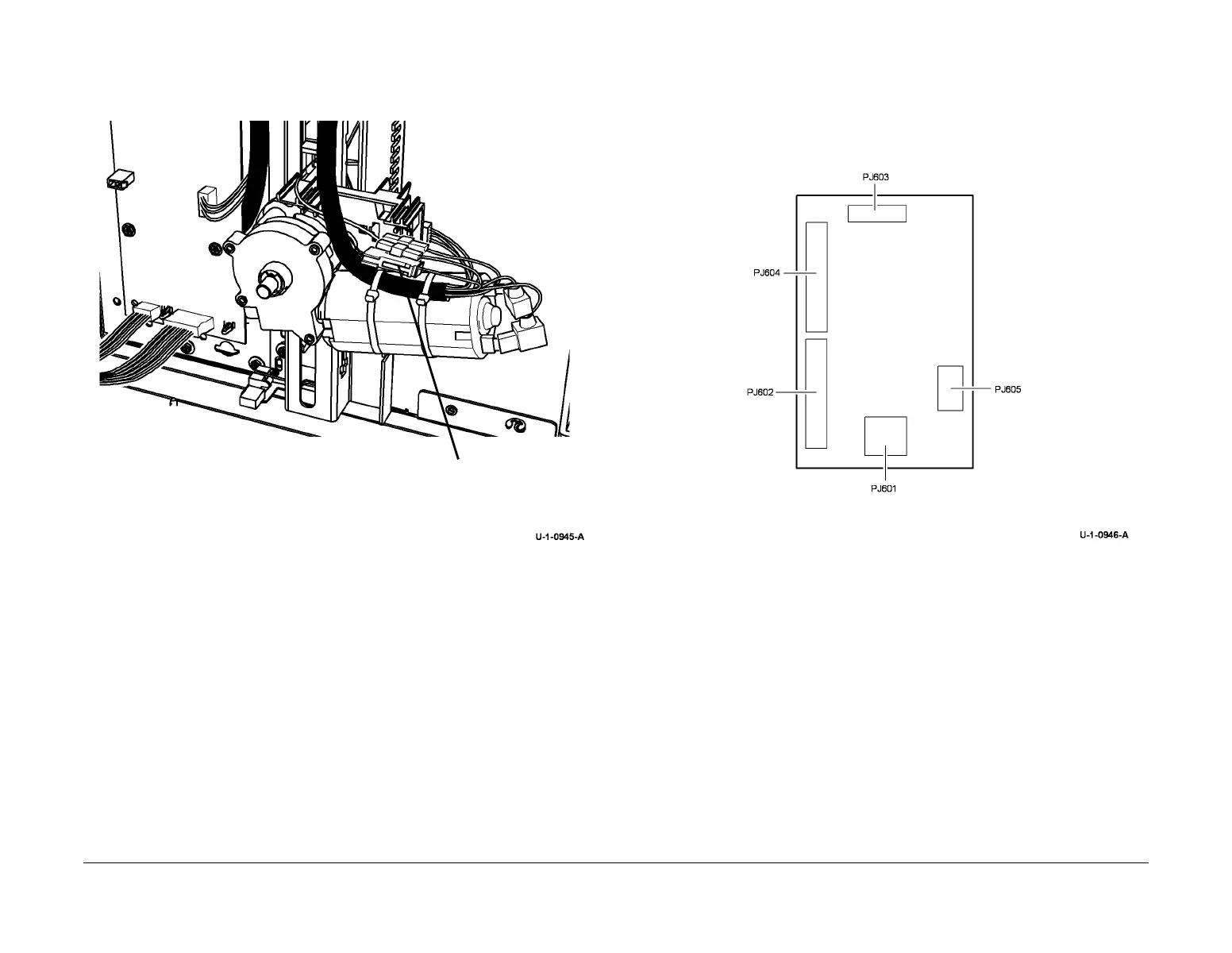

Figure 22 PJ530
Tri Folder PWB
Location: PL 12.205 Item 16.
Figure 23 Tri folder PWB
PJ530
