February 2013
7-20
ColorQube® 9303 Family
PJ Locations
Wiring Data
Inserter PWB
Location: PL 12.310 Item 9

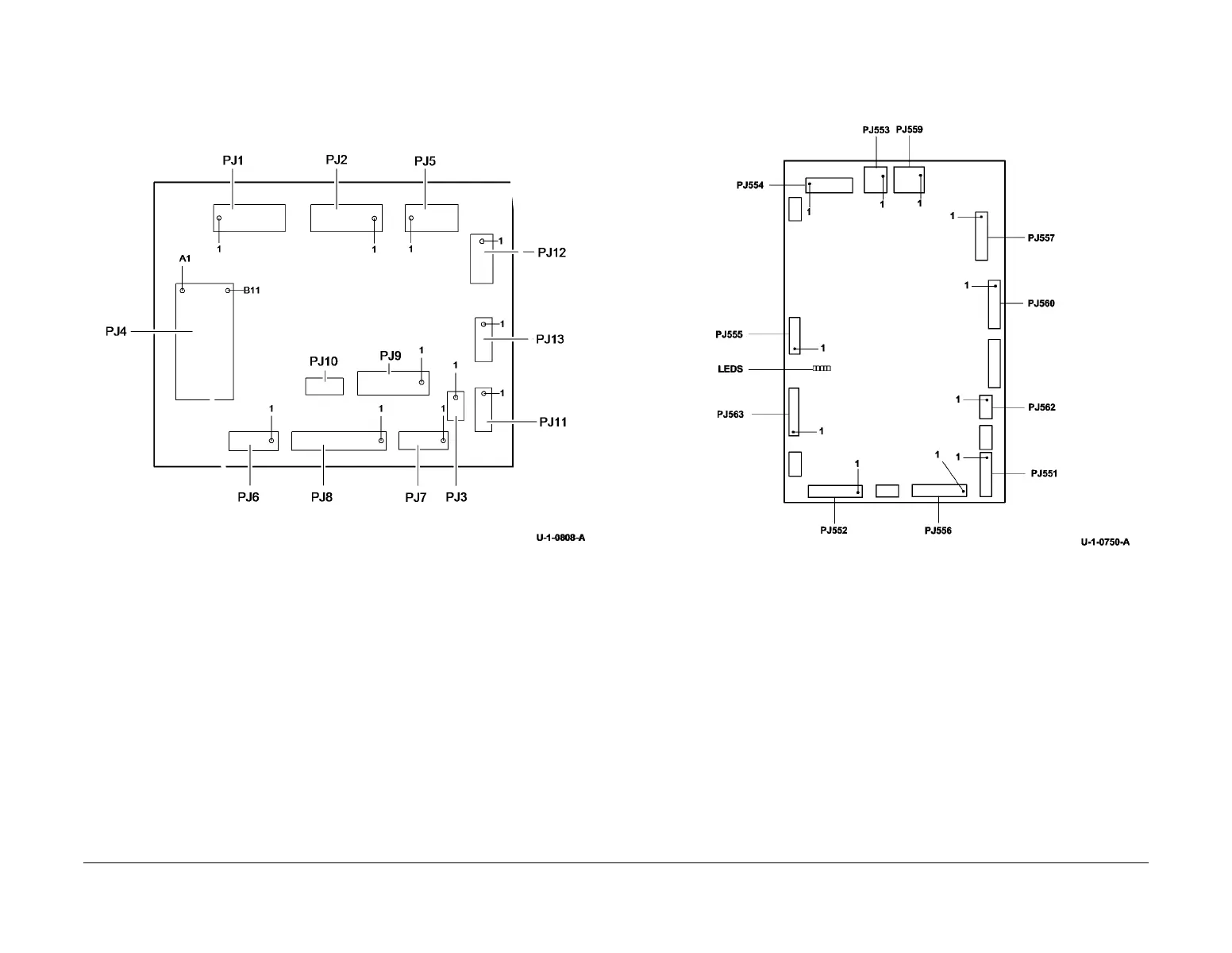

Figure 24 Inserter PWB
BM PWB
Location: PL 12.175 Item 10
Figure 25 BM PWB
