February 2013
7-21
ColorQube® 9303 Family

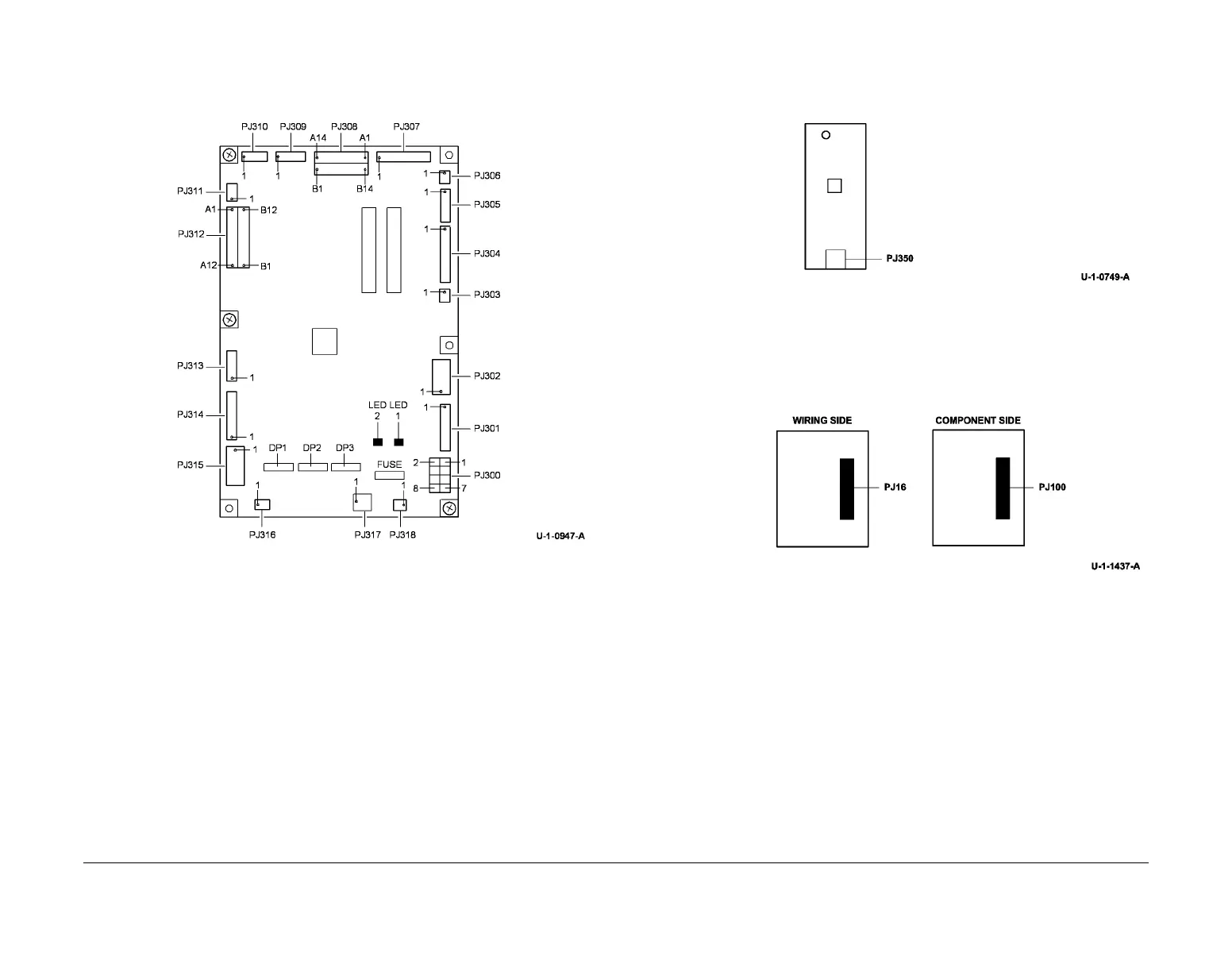

PJ Locations
Wiring Data
LCSS PWB
Location: PL 12.75 Item 1
Figure 26 LCSS PWB
Pause to Unload PWB (LCSS)
Location: PL 12.75 Item 3
Figure 27 Pause to unload PWB
Foreign Device Interface PWB
Location: PL 3.11 Item 14
Figure 28 Foreign device interface PWB
