February 2013
7-22
ColorQube® 9303 Family
PJ Locations
Wiring Data
Single Board Controller PWB
Location: PL 3.11 Item 13

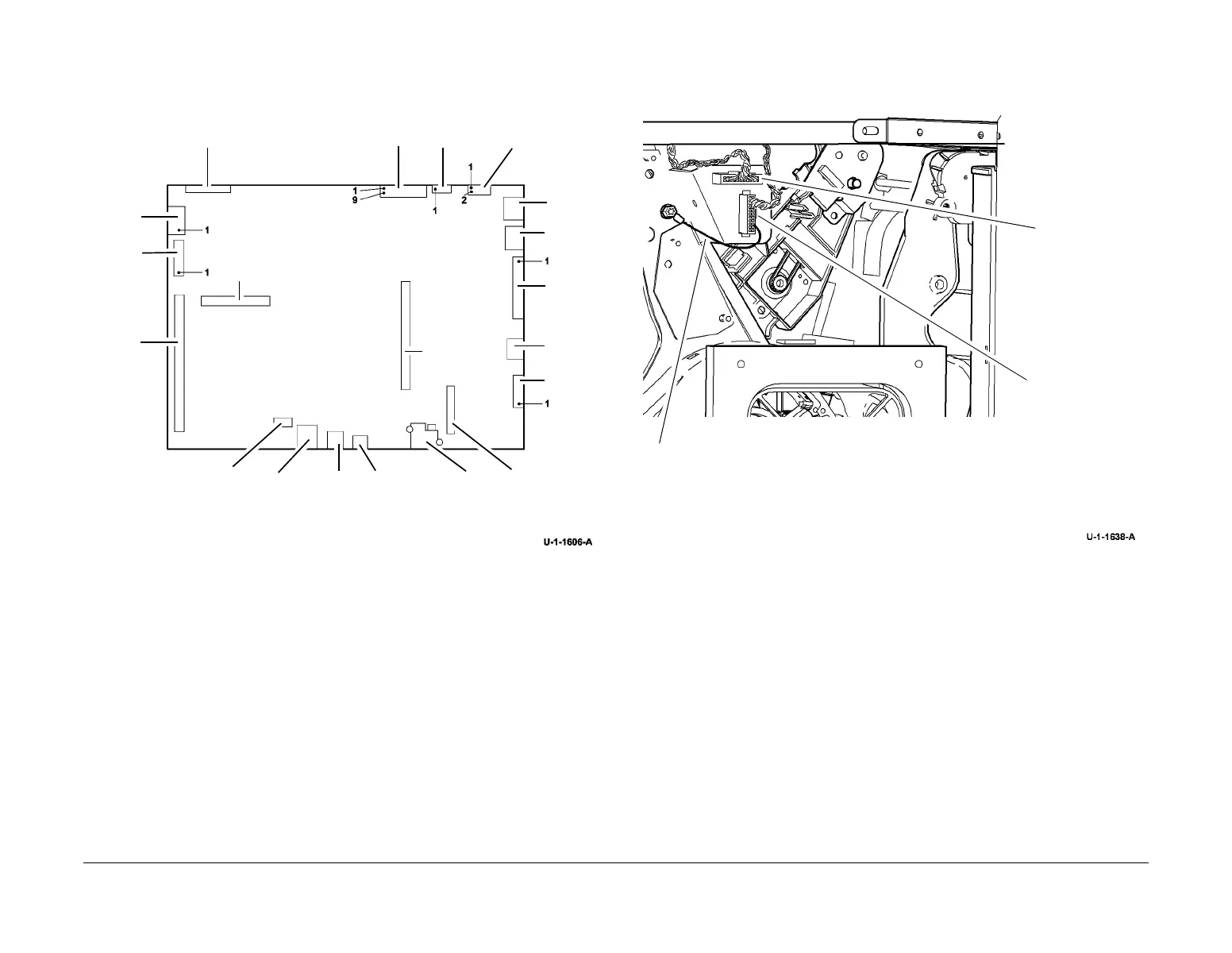

Figure 29 Single board controller PWB
In-Line Connector PJ140 and In-Line PJ
Bracket located on the rear frame that supports two in line connectors.
Figure 30 PJ140 and in-line PJ
PJ12
PJ11 PJ24
PJ25
PJ1
PJ15
PJ19
PJ223
PJ14
PJ13
PJ16
PJ21
PJ222
PJ49
PJ17
PJ18 PJ20
PJ5
PJ45
PJ10
PJ140
In-line PJ from
PJ202 on media
path driver PWB
Ground connection
